FINAL DRIVEN GEAR

NTV650 REVERE 1989 (K) FINLAND

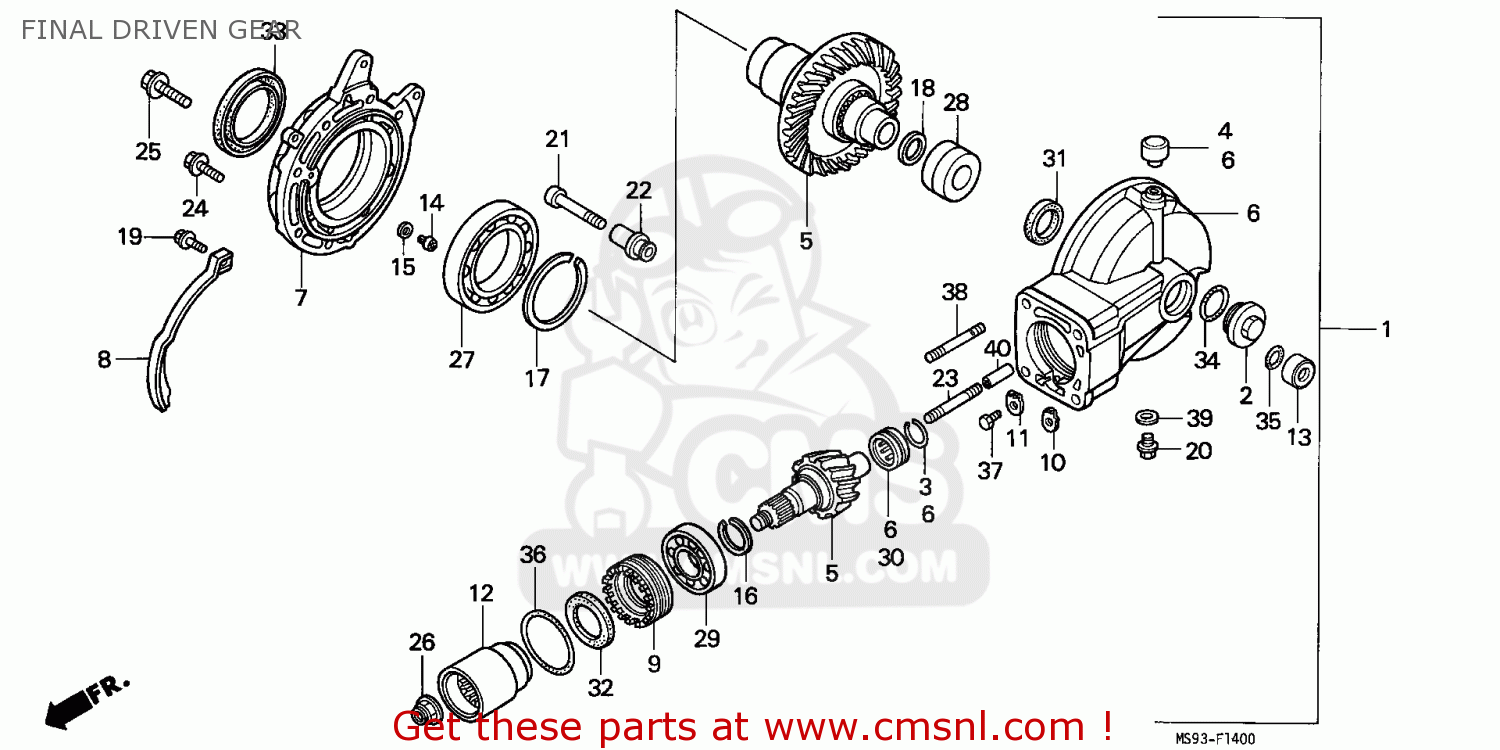

Final driven gear diagrama NTV650 REVERE 1989 (K) FINLAND

FINAL DRIVEN GEAR NTV650 REVERE 1989 (K) FINLAND
FINAL DRIVEN GEAR NTV650 REVERE 1989 (K) FINLAND
los precios están en EUR
ref
parte #
descripción
cantidad
1
41300MS9750
ref: 1
GEAR ASSY.,FINAL
€ 2,435.50
2
41302MS9000
ref: 2
CAP,GEAR CASE OIL
41302MS9000
€ 5.00
3
41305MB4770
ref: 3
RING,STOPPER
41305MB4770
€ 5.50
4
41306MB0010
ref: 4
CAP,BREATHER
41306MB0010
€ 13.00
5
41310MS9305
ref: 5
GEAR SET,FINAL
€ 432.00
6
41311MS9305
ref: 6
CASE SET,FINAL
41311MS9305
€ 1,229.50
7
41321MS9000
ref: 7
COVER,GEAR CASE
€ 166.00
8
41324MS9000
ref: 8
PLATE,DUST GUARD
€ 11.50
9
41331ME9010
ref: 9
RETAINER,BEARING
41331ME9010
€ 107.50
10
41332415000
ref: 10
LOCK A BEARING AD
41332415000
€ 2.00
11
41333415000
ref: 11
LOCK B BEARING AD
41333415000
€ 2.00
12
41410ME9770
ref: 12
JOINT,PINION
41410ME9770
€ 113.00
13
41435MS9300
ref: 13
COLLAR,RING GEAR
41435MS9300
€ 16.00
14
41436MS9300
ref: 14
PIN,RING GEAR STO
€ 7.00
15
41437MS9300
ref: 15
SHIM A,STOPPER PI
€ 3.50
15
41438MS9300
ref: 15
SHIM B,STOPPER PI
€ 3.50
16
41450MG8000
ref: 16
SHIM A,PINION GEA
41450MG8000
€ 7.50
16
41451MG8000
ref: 16
SHIM B,PINION GEA
41451MG8000
€ 7.50
16
41452MG8000
ref: 16
SHIM C,PINION GEA
41452MG8000
€ 7.50
16
41453MG8000
ref: 16
SHIM D,PINION GEA
41453MG8000
€ 7.50
16
41454MG8000
ref: 16
SHIM E,PINION GEA
41454MG8000
€ 7.50
16
41455MG8000
ref: 16
SHIM F,PINION GEA
41455MG8000
€ 7.50
16
41456MG8000
ref: 16
SHIM G,PINION GEA
41456MG8000
€ 7.50
17
41450MS9750
ref: 17
SHIM A,RING GEAR
€ 18.50
17
41451MS9750
ref: 17
SHIM B,RING GAER
€ 18.50
17
41452MS9750
ref: 17
SHIM C,RING GEAR
€ 18.50
17
41453MS9750
ref: 17
SHIM D,RING GEAR
41453MS9750
€ 18.50
17
41454MS9750
ref: 17
SHIM E,RING GEAR
€ 18.50
17
41455MS9750
ref: 17
SHIM F,RING GEAR
€ 18.50
17
41456MS9750
ref: 17
SHIM G,RING GEAR
€ 18.50
17
41457MS9750
ref: 17
SHIM H,RING GEAR
€ 18.50
17
41458MS9750
ref: 17
SHIM I,RING GEAR
€ 18.50
17
41459MS9750
ref: 17
SHIM J,RING GEAR
€ 18.50
17
41460MS9750
ref: 17
SHIM K,RING GEAR
€ 18.50
17
41461MS9750
ref: 17
SHIM L,RING GEAR
€ 18.50
17
41462MS9750
ref: 17
SHIM M,RING GEAR
€ 18.50
17
41463MS9750
ref: 17
SHIM N,RING GEAR
€ 18.50
17
41464MS9750
ref: 17
SHIM O,RING GEAR
€ 18.50
17
41465MS9750
ref: 17
SHIM P,RING GEAR
€ 18.50
17
41466MS9750
ref: 17
SHIM Q,RING GEAR
€ 18.50
17
41467MS9750
ref: 17
SHIM R,RING GEAR
€ 18.50
17
41468MS9750
ref: 17
SHIM S,RING GEAR
€ 18.50
17
41469MS9750
ref: 17
SHIM T,RING GEAR
€ 18.50
17
41470MS9750
ref: 17
SHIM U,RING GEAR
€ 18.50
17
41471MS9750
ref: 17
SHIM V,RING GEAR
€ 18.50
17
41472MS9750
ref: 17
SHIM W,RING GEAR
€ 18.50
17
41473MS9750
ref: 17
SHIM X,RING GEAR
€ 18.50
18
41510MS9750
ref: 18
SHIM A,SHAFT (1.7
€ 8.00
18
41511MS9750
ref: 18
SHIM B,SHAFT (1.7
€ 8.00
18
41512MS9750
ref: 18
SHIM C,SHAFT (1.7
€ 8.00
18
41513MS9750
ref: 18
SHIM D,SHAFT (1.8
€ 8.00
18
41514MS9750
ref: 18
SHIM E,SHAFT (1.8
€ 8.00
18
41515MS9750
ref: 18
SHIM F,SHAFT (1.8
€ 8.00
18
41516MS9750
ref: 18
SHIM G,SHAFT (1.9
€ 8.00
18
41517MS9750
ref: 18
SHIM H,SHAFT (1.9
€ 8.00
18
41518MS9750
ref: 18
SHIM I,SHAFT (1.9
€ 8.00
18
41519MS9750
ref: 18
SHIM J,SHAFT (2.0
€ 8.00
18
41520MS9750
ref: 18
SHIM K,SHAFT (2.0
€ 8.00
18
41521MS9750
ref: 18
SHIM L,SHAFT (2.0
€ 8.00
18
41522MS9750
ref: 18
SHIM M,SHAFT (2.0
€ 8.00
18
41523MS9750
ref: 18
SHIM N,SHAFT (2.1
€ 10.50
18
41524MS9750
ref: 18
SHIM O,SHAFT (2.1
€ 8.00
18
41525MS9750
ref: 18
SHIM P,SHAFT (0.4
€ 8.00
20
90081MC7000
ref: 20
BOLT,PLUG,14MM
90081MC7000
€ 11.50
21
90113MS9000
ref: 21
BOLT,DRIVE PIN
€ 4.00
22
90114MS9000
ref: 22
PIN,DRIVE
€ 6.00
23
90125MS9000
ref: 23
BOLT,STUD,10X42
€ 3.50
24
90133MB0000
ref: 24
BOLT,FLANGE,8X27
90133MB0000
€ 8.50
25
90134HA0000
ref: 25
BOLT,FLANG 10X35
90134HA0000
€ 8.00
26
90381MB0010
ref: 26
NUT,HEX.,16MM
90381MB0010
€ 5.50
27
91051MS9003
ref: 27
BEARING,RADIAL BA
91051MS9003
€ 114.00
28
91052MS9003
ref: 28
BEARING,RADIAL BA
91052MS9003
€ 35.50
29
91061MB0005
ref: 29
B/BRG RAD N/COM
91061MB0005
€ 79.50
30
91062MB4773
ref: 30
NEEDLE BRG
€ 47.50
30
91062MG8005
ref: 30
NEEDLE BRG
91062MG8005
€ 47.50
31
91261MS9005
ref: 31
OIL SEAL,38X50X8
91261MS9005
€ 9.50
32
91262MS9005
ref: 32
OIL SEAL,39X51X7
91262MS9005
€ 17.00
33
91265MS9005
ref: 33
OIL SEAL,85X110X7
91265MS9005
€ 24.50
34
91302001020
ref: 34
O RING, 30.8M/M
91302001020
€ 3.00
35
91356MS9003
ref: 35
O-RING,29.7X1.9
91356MS9003
€ 2.00
36
91359MB0000
ref: 36
O-RING,58.5X3.5
91359MB0000
€ 4.50
37
9200006012
ref: 37
BOLT,HEX 6X12
9200006012
€ 1.00
38
92900100320E
ref: 38
BOLT,STUD,10X32
92900100320E
€ 3.50
39
9410914000
ref: 39
WASHER,PLUG DRAIN 14
9410914000
€ 1.00
40
9430412200
ref: 40
PIN D,DOWEL,12X20
€ 2.00
