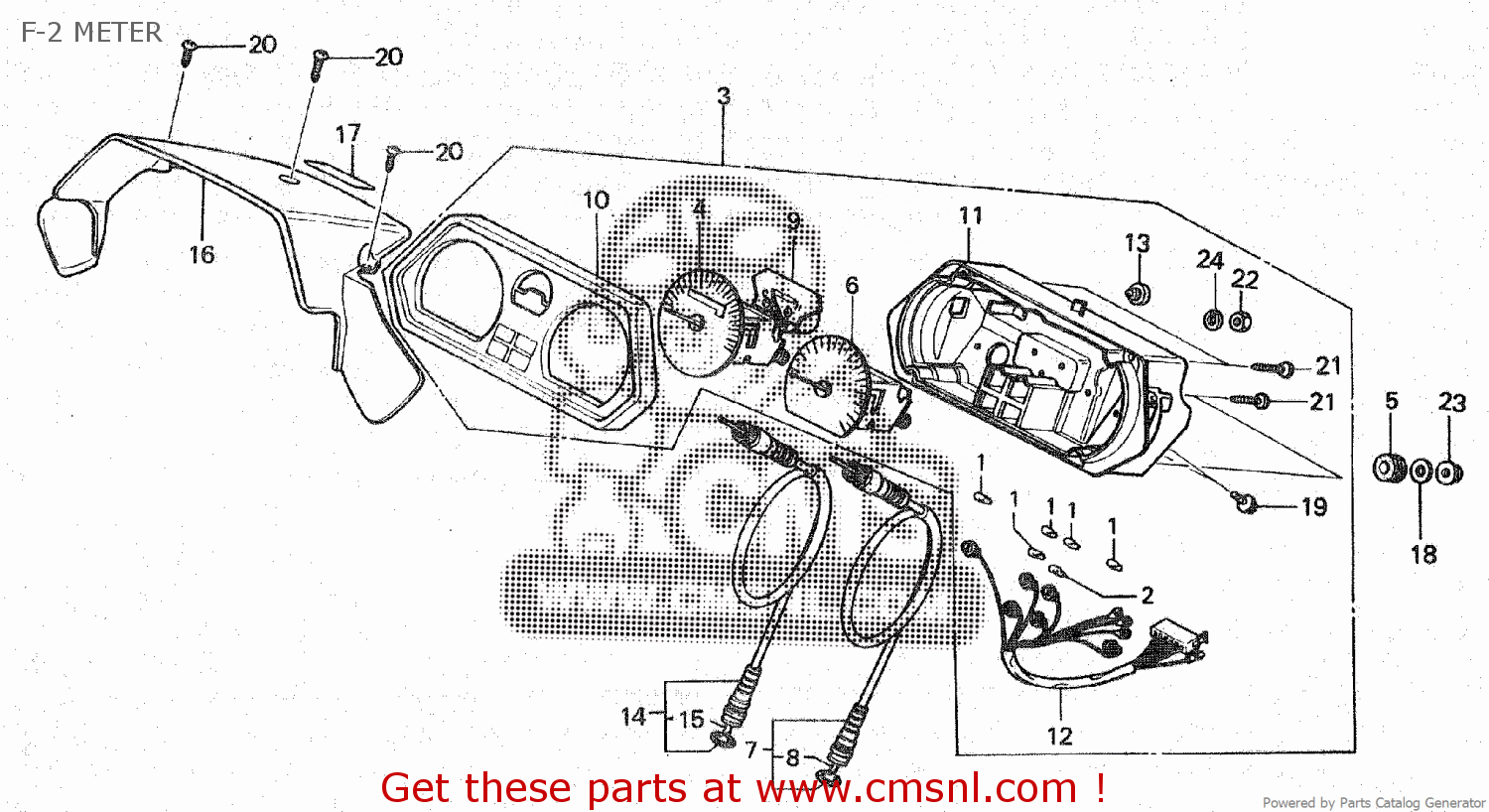

F-2 METER

ref

parte #

descripción

cantidad

1

34908GA7701
ref: 1

BULB,WEDGE BASE

€ 3.00

2

34908MB9871
ref: 2

BULB,WEDGE BASE

€ 4.00

3

37100KK4621
ref: 3
BH,F,FI,SD,SW,2F

METER COMB

€ 393.50

4

37200KK4621
ref: 4
BH,F,FI,SD,SW,2F

SPEEDOMETER ASSY

€ 186.00

5

37242473000
ref: 5

RUB,SPEDMT.MTG.

€ 2.50

6

37250KK4601
ref: 6

TACHOMETER ASSY

€ 119.50

7

37260KK4000
ref: 7

CABLE,TACHOMETER

€ 19.50

8

37261KK4000
ref: 8

CABLE,INNER

€ 5.00

9

37450KK4600
ref: 9

METER ASSY., TEMPERATURE

€ 0.00

10

37610KK4601
ref: 10

CASE,METER UPPER

€ 58.50

11

37617KK4008
ref: 11
BH,F,PI,SD,SW,2F

CASE,METER LWR.

€ 59.00

12

37619KK4600
ref: 12

SOCKET COMP.

€ 0.00

13

40514333000
ref: 13

PLUG,CHAIN CASE

€ 2.50

14

44830KK4000
ref: 14

CABLE,SPEDMT.

€ 20.00

15

44831KK4000
ref: 15

CABLE,INNER

€ 5.50

16

61310KK4000
ref: 16

VISOR,METER

€ 106.50

17

61318KK4300
ref: 17

EMB,METER VISOR

€ 7.00

18

90438671000
ref: 18

WASHER, SPECIAL, 6MM

€ 5.00

19

93500040080H
ref: 19

SCREW,PAN 4X8

€ 0.50

20

9390125280
ref: 20

TAPPING,5X12

€ 1.00

21

9390134480
ref: 21

SCREW,TAP.,4X16

€ 1.00

22

94001030000S
ref: 22

NUT HEX 3MM

€ 1.00

23

94021060000S
ref: 23

NUT HEX CAP,6MM

€ 1.50

24

9411103800
ref: 24

WASHER,SPG.,3MM

€ 1.00

todas las asambleas
