CYLINDER

FMX650 2005 (5) EUROPEAN DIRECT SALES / KPH 25K

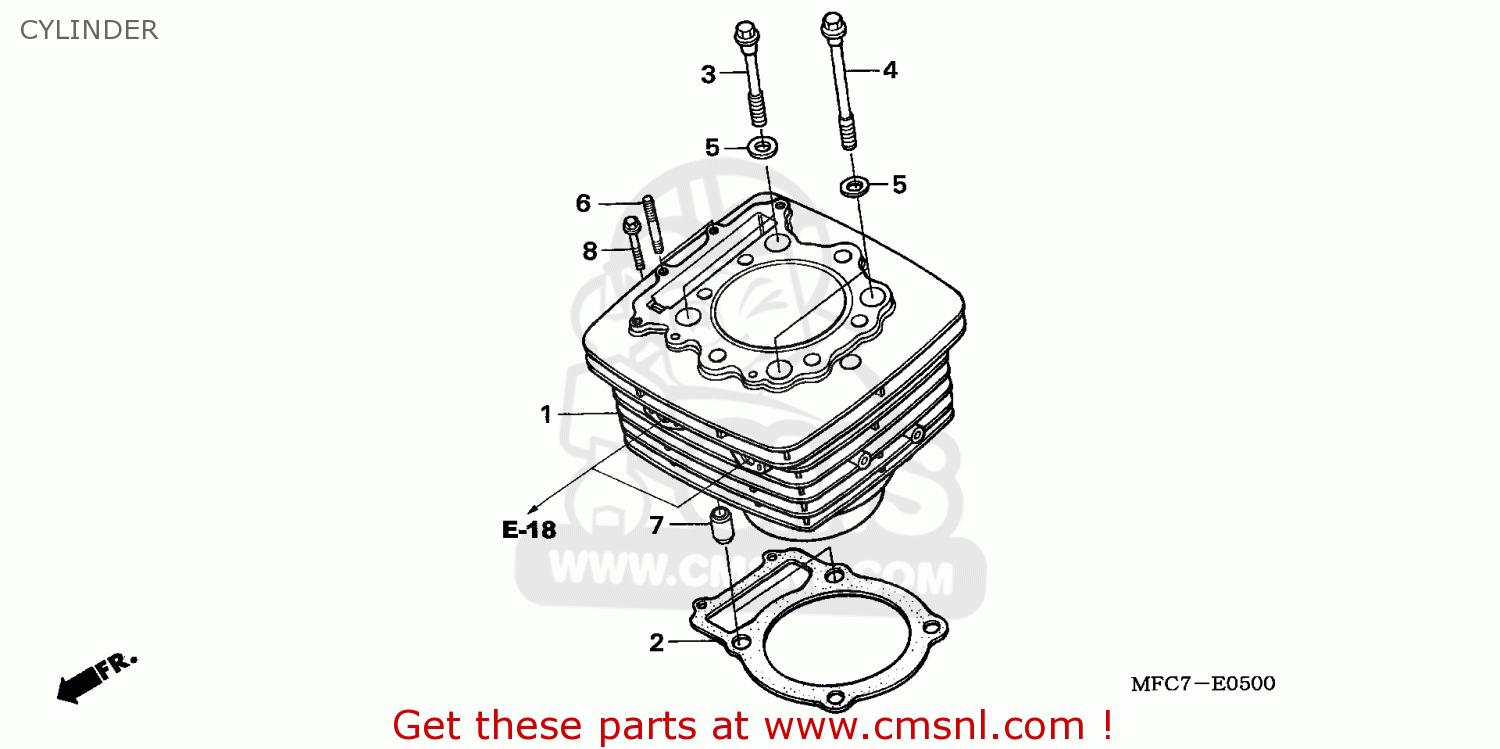

Cylinder diagrama FMX650 2005 (5) EUROPEAN DIRECT SALES / KPH 25K

CYLINDER FMX650 2005 (5) EUROPEAN DIRECT SALES / KPH 25K

los precios están en EUR

ref

parte #

descripción

cantidad

1

12100MAK650
ref: 1

CYLINDER COMP

€ 849.50

2

12191MN1700
ref: 2

GASKET,CYLINDER (NAS)

€ 10.00

3

90085MG3000
ref: 3

BOLT,FLANGE,10X66

€ 11.00

4

90086MY6880
ref: 4

BOLT,FLANGE 10X11

€ 17.00

5

90453MK4600
ref: 5

WASHER,PLAIN,10MM

€ 3.00

6

92900060220E
ref: 6

BOLT,STUD,6X22

€ 1.50

7

9430112200
ref: 7

DOWEL,PIN,12X20

€ 2.00

8

960010603200
ref: 8

BOLT,FLANGE,6X32

€ 2.00
