WATER PUMP

CRF250R 2008 (8) EUROPEAN DIRECT SALES / CMF

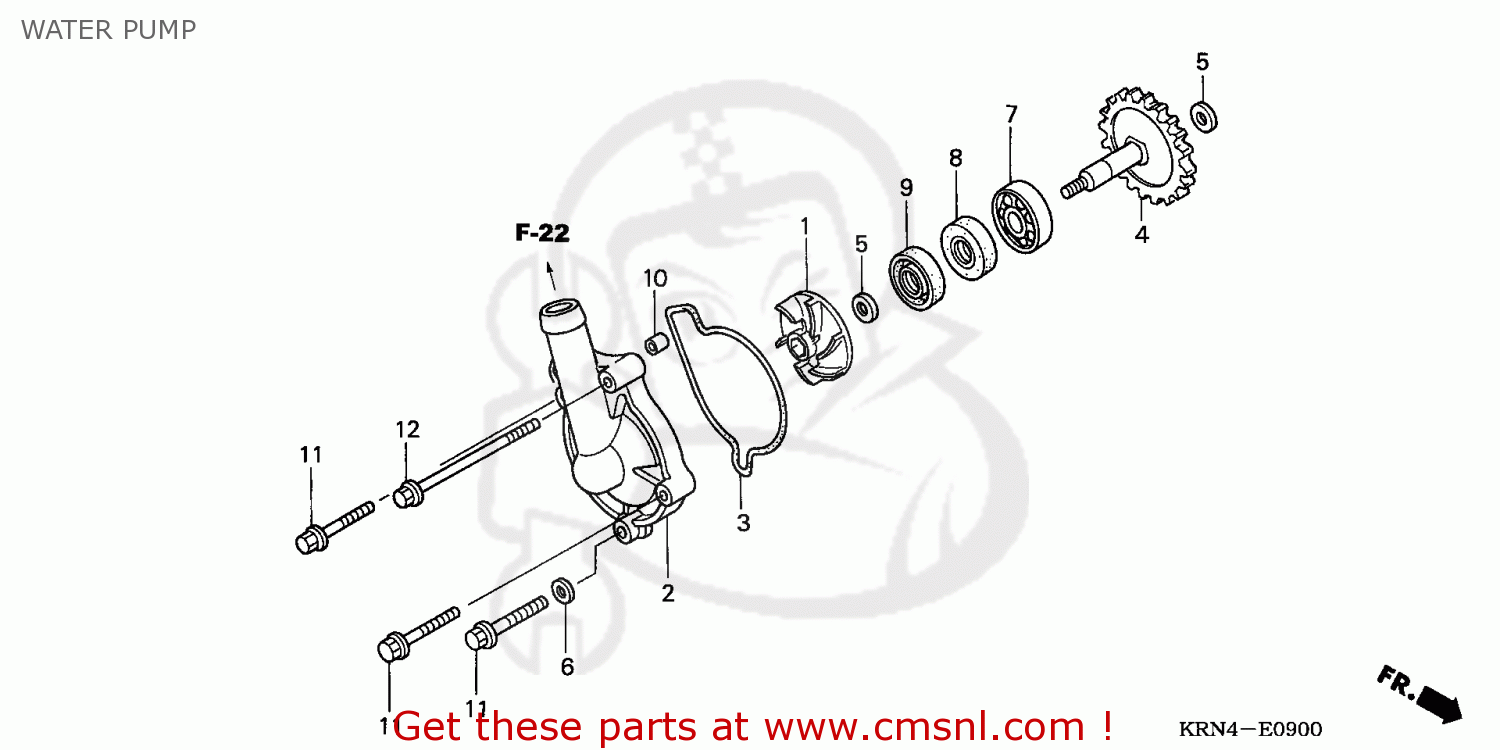

Water pump diagrama CRF250R 2008 (8) EUROPEAN DIRECT SALES / CMF

WATER PUMP CRF250R 2008 (8) EUROPEAN DIRECT SALES / CMF

los precios están en EUR

ref

parte #

descripción

cantidad

1

19215KRNA00
ref: 1

IMPELLER,W/P

€ 35.00

2

19221KRNA00
ref: 2

COVER,WATER PUMP

€ 71.00

3

19226KRN670
ref: 3

GASKET,WATER PUMP

€ 5.00

4

19240KRN670
ref: 4

GEAR COMP,WATER P

€ 75.50

5

90447KE1000
ref: 5

WASH,SEALING,7MM

€ 3.00

6

90463ML7000
ref: 6

WASHER,SEALING,6.

€ 5.50

7

91001KA4003
ref: 7

B/BRG RAD N/COM

€ 19.00

8

91201148003
ref: 8

OIL SEAL,12X22X5

€ 4.50

9

91211KSE671
ref: 9

SEAL,WATER PUMP

€ 6.50

10

9430108100
ref: 10

DOWEL,PIN,8X10

€ 2.50

11

960010602800
ref: 11

BOLT,FLANGE,6X28

€ 2.00

12

960010607000
ref: 12

BOLT,FLANGE,6X70

€ 1.50
