los precios están en EUR

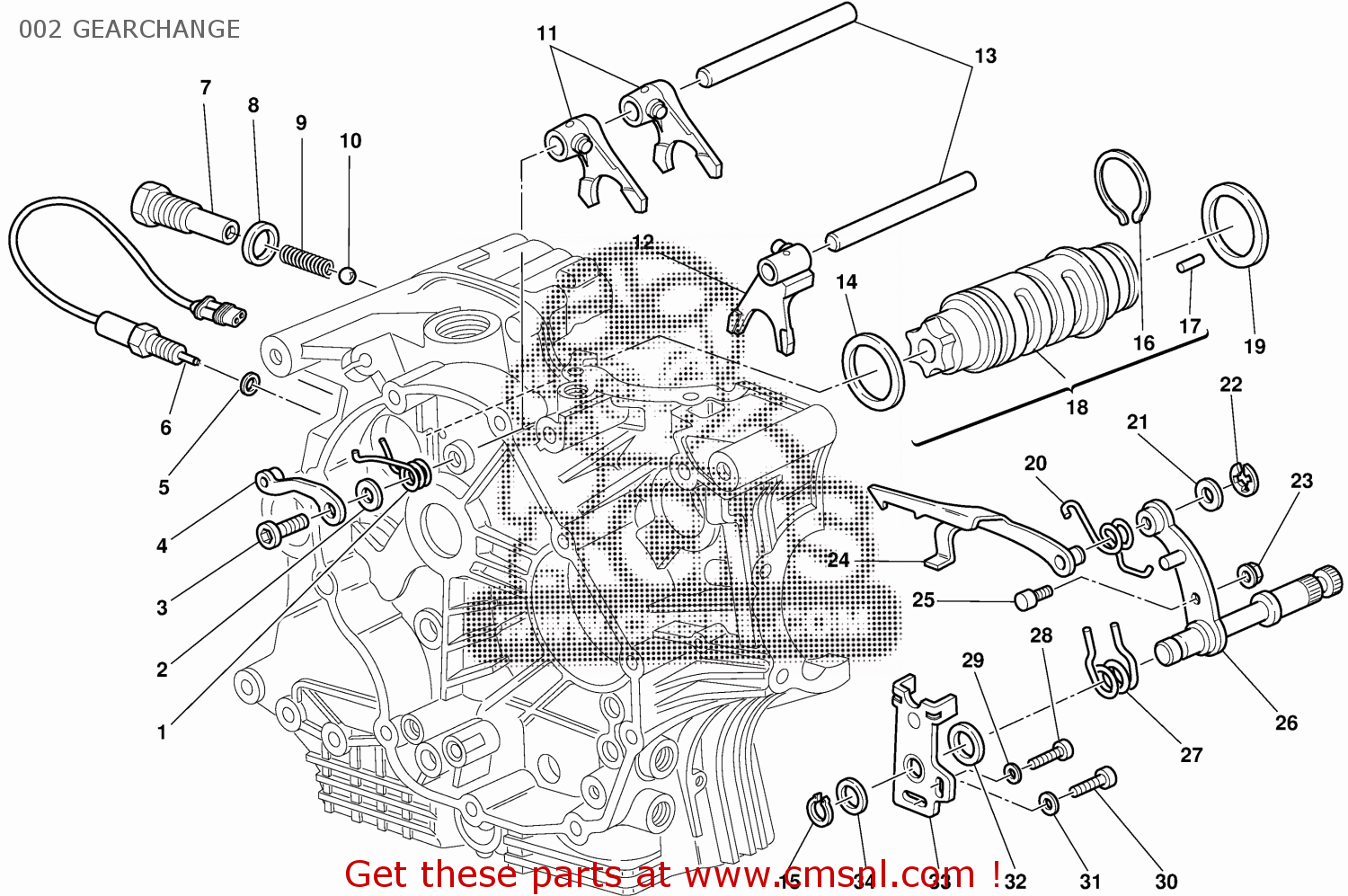

ref
parte #
descripción
cantidad
1
SPRING, RETURN
4
GEAR FIXING CLICK ASSEMBLY
5
COPPER GASKET 11.9X8.2X2
6
NEUTRAL SWITCH ASSY
7
SCRE M16X1.5, SPRING SEAT
8
GASKET 16.2X24X2
9
GEAR SELECTOR SPRING
10
BALL 11MM
11
SHIFT FORK 1ST-4TH 2ND-3RD
13
AXLE, GEAR SHIFT FORK 10X116 MM
14
THRUST WASHER 1 MM
15
CIRCLIP 15 DIN 471
17
SPECIAL ROLLER
19
THRUST WASHER 45.2X49X1.0
19
THRUST WASHER 45.2X49X0.9
21
THRUST WASHER 10.5X16X0.5
21
THRUST WASHER 10.5X15X0.2
22
RING, BENZING 8MM DIN 6799
23
SELF LOCKING NUT M6 H5.5
25
GEARCHANGE LEVER PIN
27
SPRING, SHIFT RETURN
28
BOLT, SOCKET HEAD M6X20
32
CENTERING RING
34
THRUST WASHER 15.5X22X0.2
34
THRUST WASHER 15.5X22X0.5
