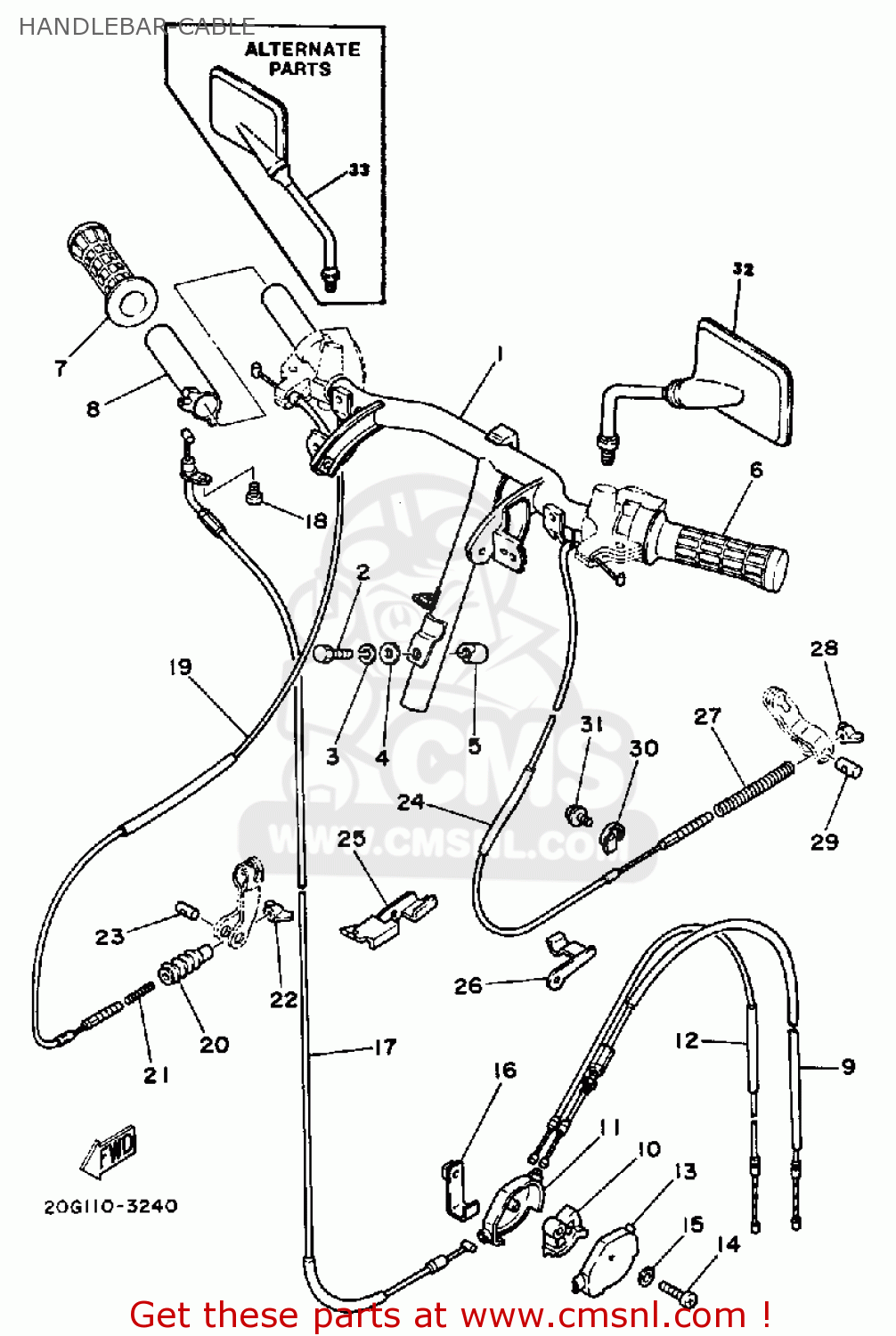

HANDLEBAR-CABLE

ref

Teil #

Beschreibung

Anzahl

1

20G2611000
ref: 1

HANDLE COMP.

€ 151.50

2

9010908507
ref: 2

BOLT (2T4)

€ 3.00

3

9299008100
ref: 3

YBS67-8 WASHER, SPRING

€ 1.00

4

2E92612900
ref: 4

WASHER

€ 1.50

5

9017908354
ref: 5
(CA50K)

NUT (5M1)

€ 3.50

6

5G32624100
ref: 6

GRIP (L.H)

€ 4.50

7

5G32624200
ref: 7

GRIP (R.H)

€ 4.50

8

2GN2624300
ref: 8

TUBE, THROTTLE GUIDE

€ 6.00

9

14T2632100
ref: 9

CABLE, PUMP

€ 17.50

10

5G32626302
ref: 10

PIECE, CONNECTING

€ 5.50

11

5G32626102
ref: 11
(CA50K)

CONNECTOR, CABLE

€ 3.00

12

14T2631200
ref: 12

CABLE, THROTTLE 2

€ 11.00

13

2T42626202
ref: 13

CAP, CABLE CONNECTOR

€ 7.00

14

9850305025
ref: 14

SCREW, PAN HEAD

€ 2.00

15

9290105600
ref: 15

WASHER, PLATE (517)

€ 1.00

16

14T2639800
ref: 16

WASHER

€ 5.50

17

14T2631100
ref: 17

CABLE, THROTTLE 1

€ 33.50

18

9858005012
ref: 18

SCREW,PAN HEAD (646)

€ 1.00

19

14T2634100
ref: 19

CABLE, BRAKE

€ 34.00

20

14T2634200
ref: 20

BOOT, CABLE

€ 6.00

21

9050110513
ref: 21

SPRING, COMPRESSION (2T4)

€ 1.50

22

9017906411
ref: 22

NUT (25K)

€ 1.50

23

9024912008
ref: 23

PIN

€ 3.50

24

14T2635100
ref: 24

CABLE, BRAKE

€ 36.50

25

9046530195
ref: 25

CLAMP (14T)

€ 4.50

26

9046530196
ref: 26

CLAMP (14T)

€ 5.00

27

9050110695
ref: 27

SPRING, COMPRESSION (14T)

€ 1.50

28

9017906411
ref: 28

NUT (25K)

€ 1.50

29

9024912008
ref: 29

PIN

€ 3.50

30

5M02639300
ref: 30

HOLDER

€ 2.00

31

9010506138
ref: 31

BOLT (3L7)

€ 0.50

32

14T2629010
ref: 32

REAR VIEW MIRROR ASSY(LEFT)

€ 27.00

33

14T2629000
ref: 33
ALT. PRT

REAR VIEW MIRROR ASSY(RIGHT)

€ 29.00

alle Baugruppen
