CAMSHAFT & CHAIN

TTR50EX 2008 1P68 CANADA 1G1P6-100E1

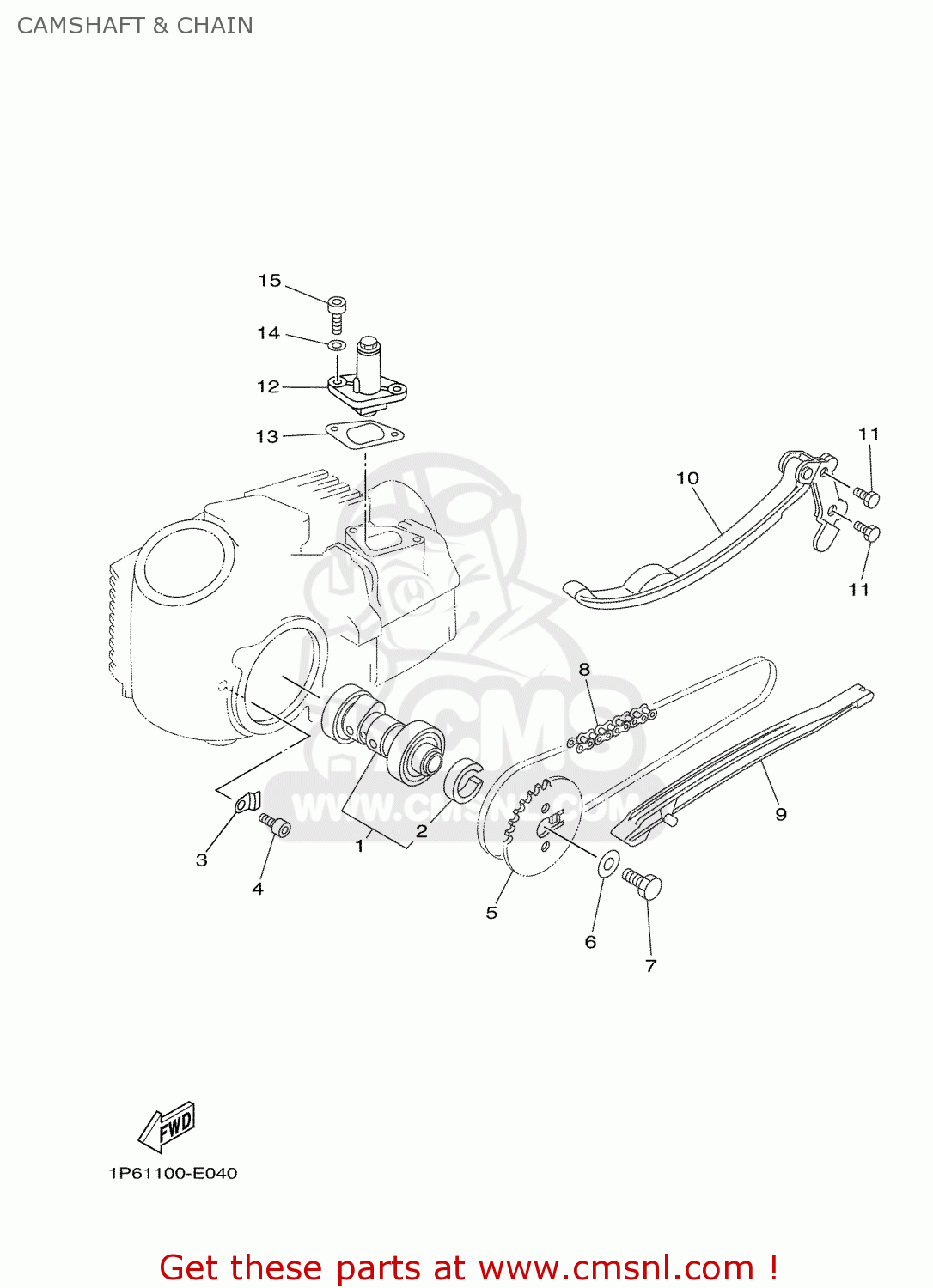

Camshaft & chain Schaubild TTR50EX 2008 1P68 CANADA 1G1P6-100E1

CAMSHAFT & CHAIN TTR50EX 2008 1P68 CANADA 1G1P6-100E1
CAMSHAFT & CHAIN TTR50EX 2008 1P68 CANADA 1G1P6-100E1
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
01
1P6E217000
ref: 01
CAMSHAFT ASSY 1
1P6E217000
€ 126.50
02
90387167L5
ref: 02
COLLAR(50M)
90387167L5
€ 17.00
03
1P6E111F00
ref: 03
PLATE
€ 1.50
04
9011006829
ref: 04
BOLT, HEXAGON SOCKET HEAD
€ 1.50
05
1P6E217600
ref: 05
SPROCKET, CAM CHAIN
€ 23.50
06
1P6E461700
ref: 06
WASHER
€ 2.00
07
9010108820
ref: 07
BOLT
€ 1.50
08
9459151084
ref: 08
CHAIN
9459151084
€ 22.50
09
1P6E223100
ref: 09
GUIDE, STOPPER 1
€ 19.00
10
1P6E224100
ref: 10
GUIDE, STOPPER 2
€ 34.00
11
9131N06016
ref: 11
BOLT
9131N06016
€ 0.50
12
4GL1221000
ref: 12
TENSIONER ASSY, CAM CHAIN
4GL1221000
€ 82.00
13
5VLE221310
ref: 13
GASKET, TENSIONER CASE (NAS)
5VLE221310
€ 1.00
14
9043006817
ref: 14
GASKET (NAS)
9043006817
€ 1.00
