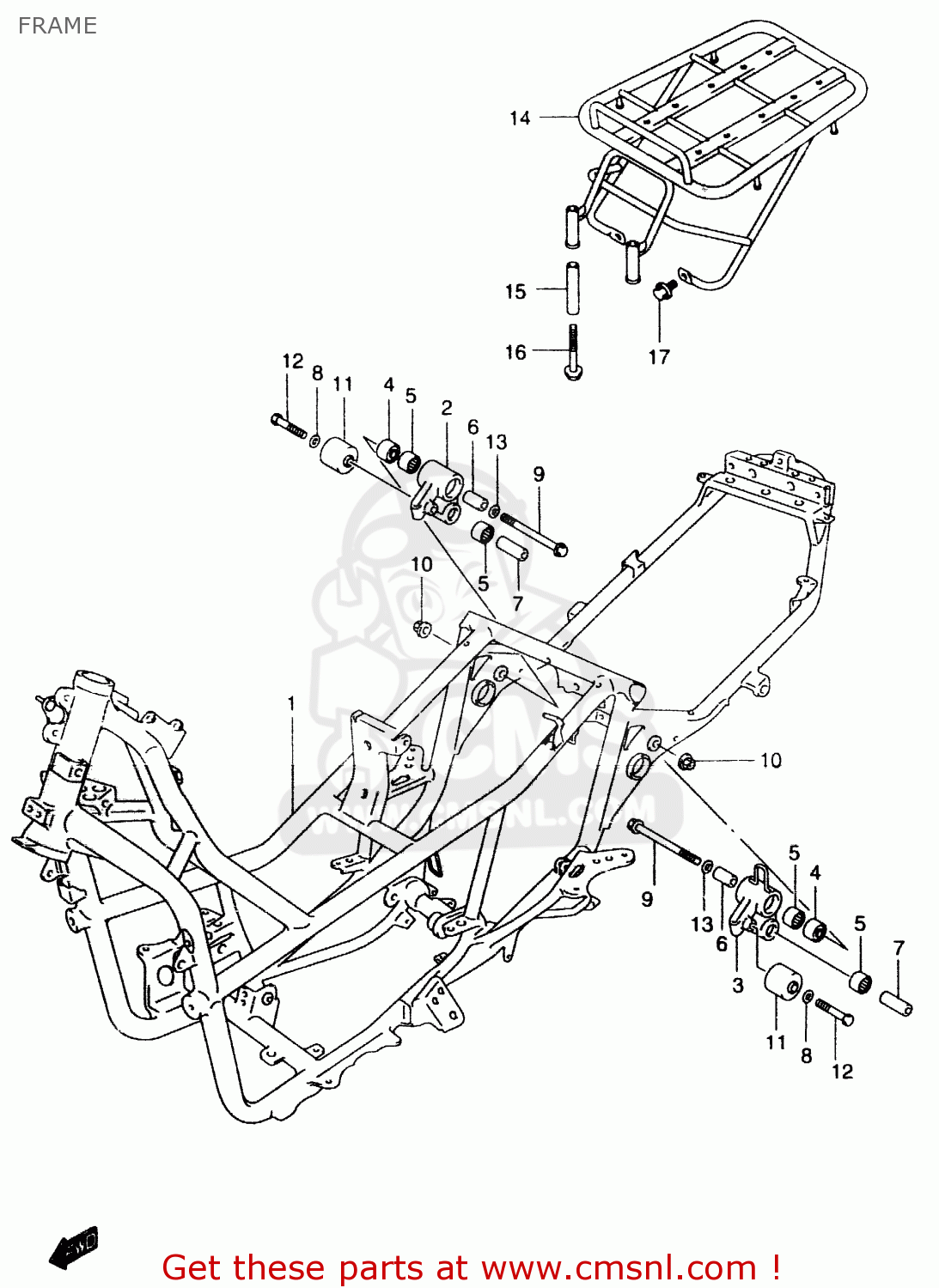

FRAME

ref

Teil #

Beschreibung

Anzahl

1

4110014F10
ref: 1

FRAME

€ 1,510.50

2

4118014830
ref: 2

BRACKET SET, CRANKCASE RH

€ 162.00

3

4119014830
ref: 3

BRACKET SET, CRANKCASE LH

€ 156.00

4

0931912054
ref: 4

BUSH

€ 20.50

5

0926320064
ref: 5

BEARING(20X27X26)

€ 19.50

6

4121314F10
ref: 6

SPACER,CRANKCASE BRACKET

€ 11.50

7

4121414F00
ref: 7

SPACER,CRANKCA

€ 12.50

8

0916012044
ref: 8

WASHER(12.5X35X3.2)

€ 3.00

9

0910312041
ref: 9

BOLT(12X118)

€ 11.00

10

0831931128
ref: 10

NUT 12MM

€ 3.00

11

4118514F00
ref: 11

CUSHION,SWING STOP

€ 21.00

12

0910012046
ref: 12

BOLT(12X58)

€ 4.00

13

0832201123
ref: 13

WASHER

€ 2.00

14

4630014F00
ref: 14
OPT

CARRIER SET,SP

€ 213.50

15

4635614F00
ref: 15
OPT

SPACER, LOWER

€ 10.00

16

0910308300
ref: 16
OPT

BOLT(8X85)

€ 3.00

17

0910308280
ref: 17
OPT

BOLT(8X65)

€ 6.00
