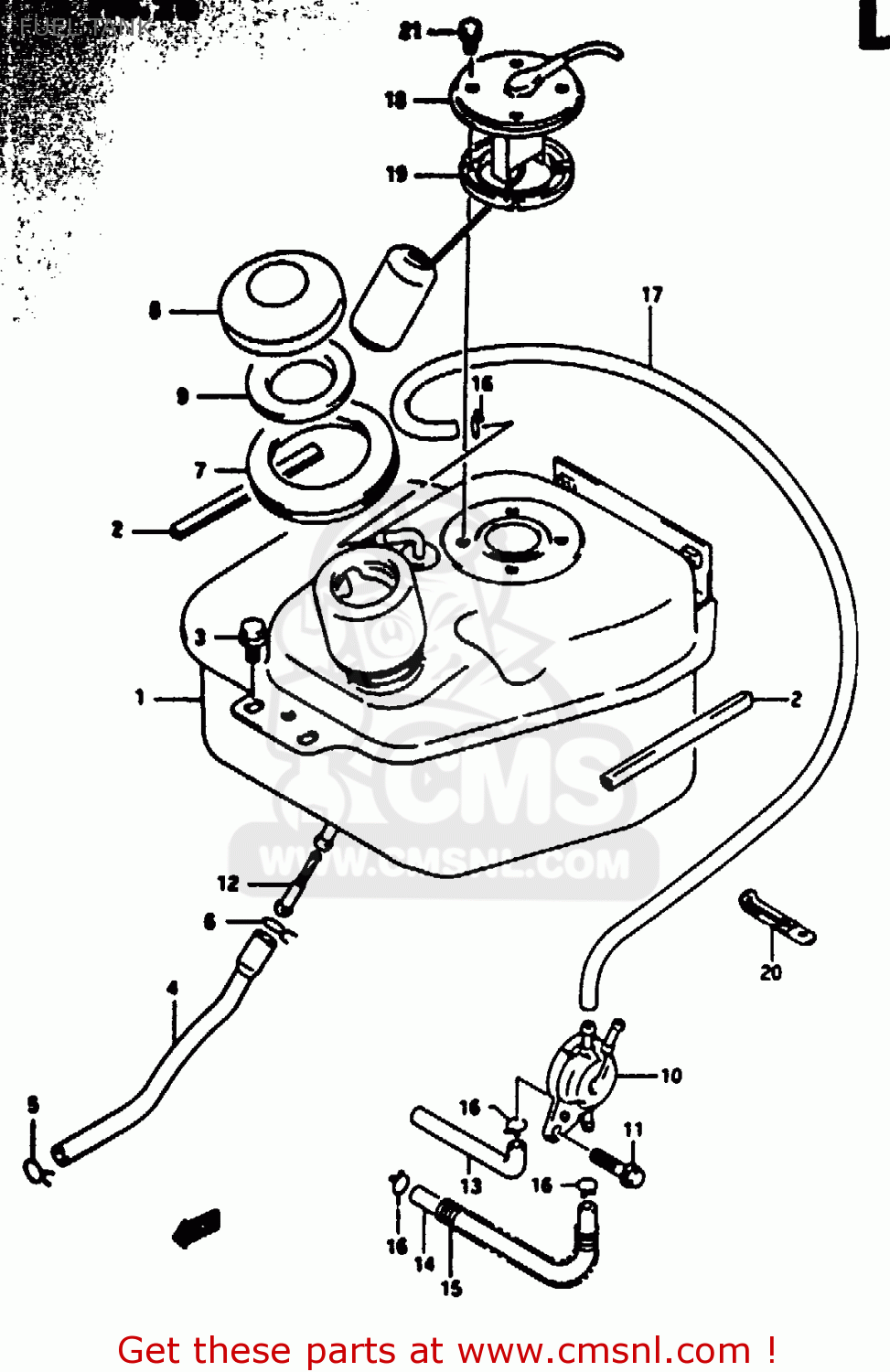

FUEL TANK

ref

Teil #

Beschreibung

Anzahl

1

4411036C10
ref: 1

TANK COMP,FUEL

€ 149.50

2

1487290900
ref: 2

SEAL

€ 4.00

3

0155006163
ref: 3

BOLT

€ 2.50

4

4419936C00
ref: 4

HOSE,FUEL TANK INLET

€ 0.00

5

0940110411
ref: 5

CLIP

€ 1.50

6

0940112404
ref: 6

CLIP

€ 2.00

7

4426136C10
ref: 7

GROMMET,FUEL TANK INLET

€ 7.00

8

4421023300
ref: 8

CAP,FUEL TANK

€ 49.50

9

8541370000
ref: 9

GASKET (NAS)

€ 4.50

10

4430011B01
ref: 10

COCK ASSY,FUEL

€ 41.00

11

0155006163
ref: 11

BOLT

€ 2.50

12

4432227001
ref: 12

FILTER,FUEL

€ 4.00

13

0935250823600
ref: 13
L:600@r160

HOSE(5X8.2X600)

€ 12.00

14

0935250823600
ref: 14
L:600@r180

HOSE(5X8.2X600)

€ 12.00

15

0944010019
ref: 15

SPRING

€ 3.50

16

0940108401
ref: 16

CLIP

€ 1.50

17

4423636C10
ref: 17

HOSE,AIR VENT

€ 0.00

18

3481036C10
ref: 18

GAUGE ASSY,FUEL LEVEL SENDER

€ 37.50

19

3482529C00
ref: 19

PACKING (NAS)

€ 4.50

20

0940406429
ref: 20

CLAMP(L:45)

€ 2.00

21

0157005123
ref: 21

BOLT

€ 2.00
