STARTER CLUTCH

VS600GL 1995 (S) ITALY (E34)

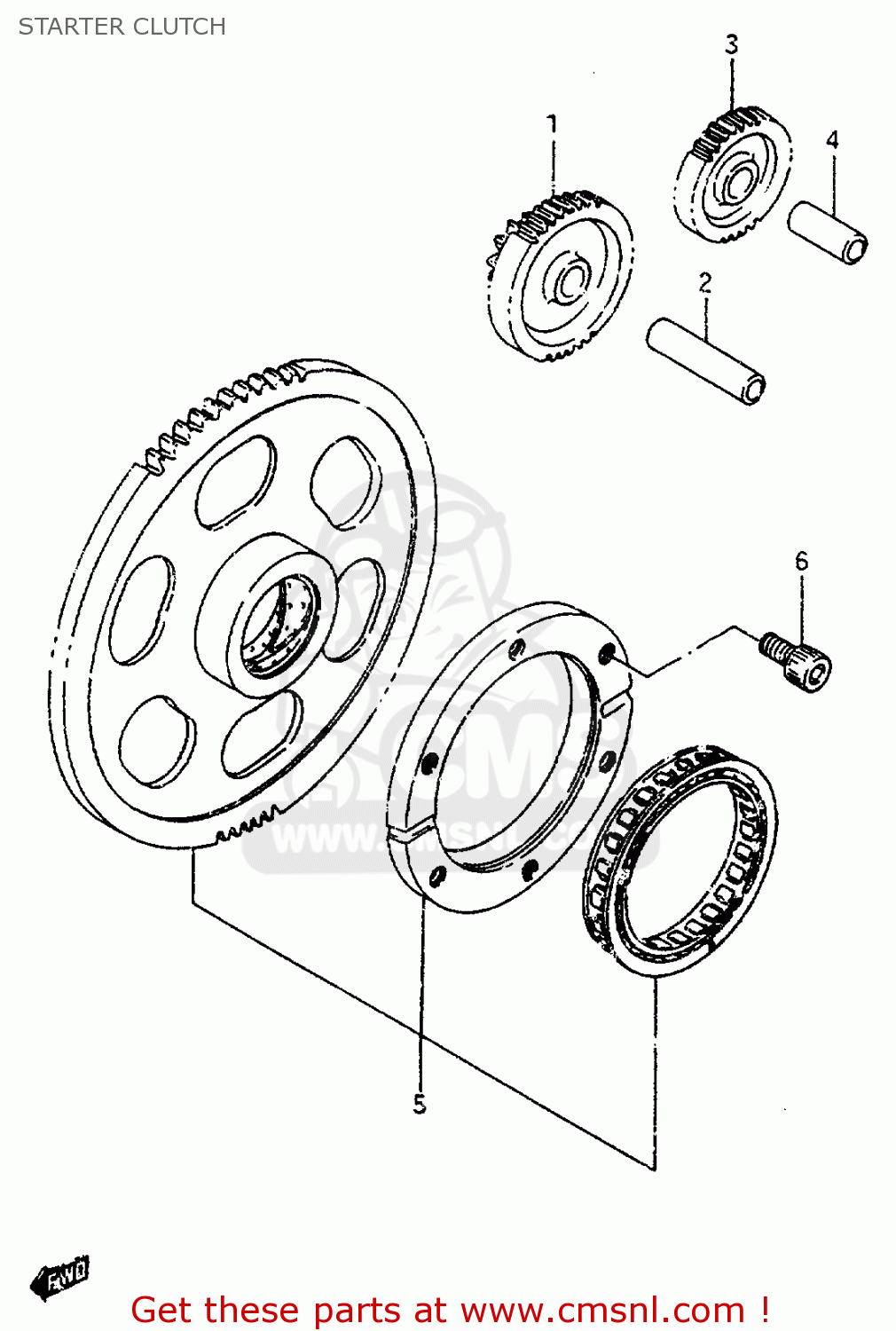

Starter clutch Schaubild VS600GL 1995 (S) ITALY (E34)

STARTER CLUTCH VS600GL 1995 (S) ITALY (E34)

Preise sind in EUR

ref

Teil #

Beschreibung

Anzahl

1

1261138A01
ref: 1
NT:12/41

GEAR,STARTER IDLE NO.1

€ 54.00

2

0920210008
ref: 2

PIN,10X43

€ 8.50

3

1261138A11
ref: 3
NT:32

GEAR,STARTER IDLE NO.2

€ 36.50

4

0920210006
ref: 4

PIN

€ 6.00

5

1260038831
ref: 5

CLUTCH SET,STARTER

€ 287.00

6

0713008163
ref: 6

BOLT

€ 3.00
