REAR SWINGING ARM (MODEL M/N/P/R/S)

RM80X 1989 (K)

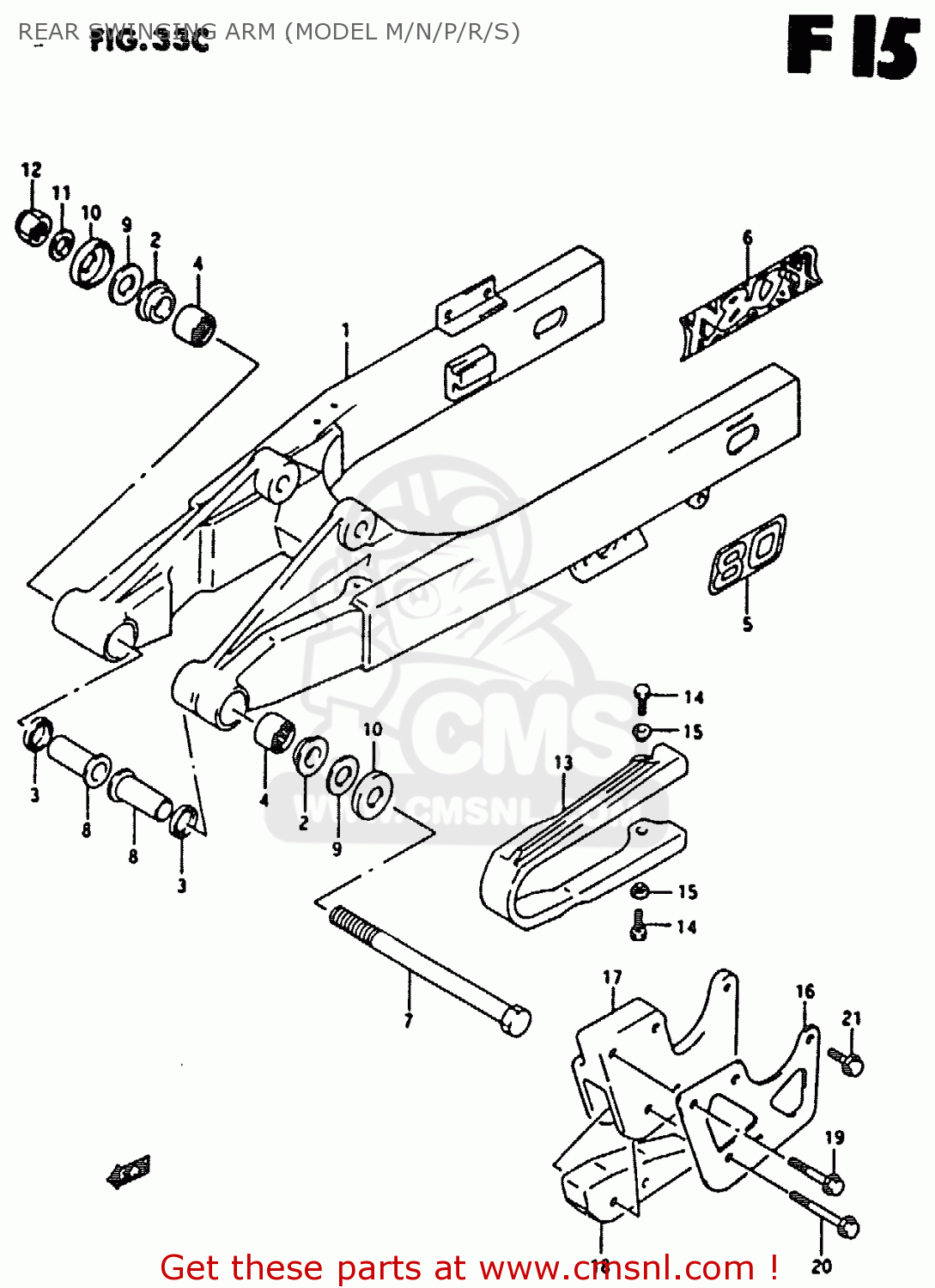

Rear swinging arm (model m/n/p/r/s) Schaubild RM80X 1989 (K)

REAR SWINGING ARM (MODEL M/N/P/R/S) RM80X 1989 (K)
REAR SWINGING ARM (MODEL M/N/P/R/S) RM80X 1989 (K)
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
1-1
6100003B00
ref: 1-1
MODEL M/N/P @r61000-
SWING ARM ASSEMBLY,REAR
6100003B00
€ 149.50
1-2
6100003B20
ref: 1-2
MODEL R @r61000-03B2
SWING ARM ASSEMBLY,REAR
€ 149.50
1-3
6100003B21
ref: 1-3
WITH OUT EMBLEM
SWINGINGARM ASSY,RR
€ 149.50
1-4
6100003B21
ref: 1-4
MODEL S
SWINGINGARM ASSY,RR
€ 149.50
2
6126102B00
ref: 2
BUSHING,SWGARM PIVOT
6126102B00
€ 10.50
3
0928517001
ref: 3
SEAL,OIL(17X24X3)
0928517001
€ 3.00
4
0926317038
ref: 4
BEARING(17X24X30)
0926317038
€ 21.00
5
6838103B0012R
ref: 5
MODEL M/N/P
EMBLEM,SWING ARM
€ 8.50
6-1
6838103B21C2N
ref: 6-1
MODEL R
EMBLEM,SWING ARM
€ 18.00
6-2
6838103B21DOK
ref: 6-2
MODEL S
EMBLEM
€ 0.00
7
6121102B40
ref: 7
SHAFT,RR SWINGINGARM PIVOT
6121102B40
€ 11.00
8
6125102B40
ref: 8
SPACER,RR SWGARM PIVOT
6125102B40
€ 15.50
9
0821112282
ref: 9
WASHER
0821112282
€ 2.00
10
6126203B00
ref: 10
COVER,SWGARM PIVOT
6126203B00
€ 5.00
11-1
0832211128
ref: 11-1
MODEL M/N/P
WASHER
0832211128
€ 2.00
11-2
0832201123
ref: 11-2
MODEL R/S
WASHER
€ 2.00
12
0831921128
ref: 12
NUT 12MM
0831921128
€ 3.00
13
6127302B20
ref: 13
BUFFER,CHAIN TOUCH DEFENSE
6127302B20
€ 22.00
14-1
0154706167
ref: 14-1
MODEL M/N/P
BOLT
0154706167
€ 1.50
14-2
0154706163
ref: 14-2
MODEL R/S
BOLT
0154706163
€ 2.00
15
0916906057
ref: 15
WASHER
0916906057
€ 3.00
16
6134202B40
ref: 16
PLATE,GUIDE CHAIN OUTER
6134202B40
€ 15.00
17
6134302B40
ref: 17
GUIDE,CHAIN
6134302B40
€ 18.50
18
6134802B20
ref: 18
DEFENSE,CHAIN GUIDE
6134802B20
€ 10.00
19-1
0154706307
ref: 19-1
MODEL M/N/P
BOLT
0154706307
€ 2.00
19-2
0154706303
ref: 19-2
MODEL R/S
BOLT,G/S SWITC
0154706303
€ 2.00
20-1
0154706407
ref: 20-1
MODEL M/N/P
BOLT
0154706407
€ 2.00
20-2
0154706403
ref: 20-2
MODEL R/S
BOLT
0154706403
€ 2.50
21-1
0154706167
ref: 21-1
MODEL M/N/P
BOLT
0154706167
€ 1.50
21-2
0154706163
ref: 21-2
MODEL R/S
BOLT
0154706163
€ 2.00
