FRONT WHEEL (GS125Z/D)

GS125ES 1985 (F) (E01 E02 E04 E15 E24)

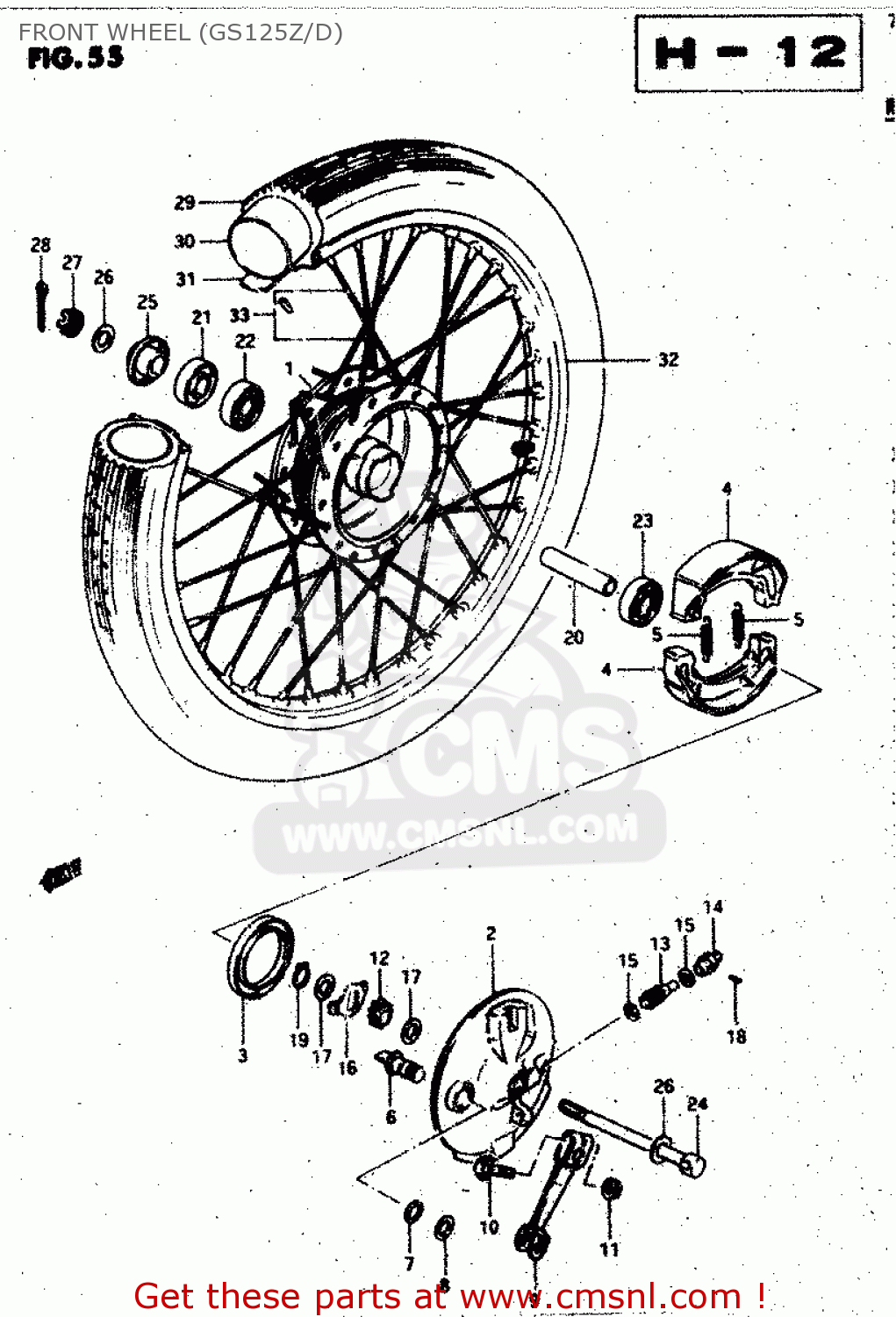

Front wheel (gs125z/d) Schaubild GS125ES 1985 (F) (E01 E02 E04 E15 E24)

FRONT WHEEL (GS125Z/D) GS125ES 1985 (F) (E01 E02 E04 E15 E24)

Preise sind in EUR

ref

Teil #

Beschreibung

Anzahl

1

5411007602
ref: 1

HUB,FRONT

€ 0.00

2

5421005300
ref: 2
ARROW RIGHT54210-053

PANEL,FRONT BRAKE ANCHOR

€ 0.00

3

0928548001
ref: 3

SEAL,OIL(48X62X7)

€ 5.00

4-1

5441007003
ref: 4-1
E1,E2

SHOE,BRAKE

€ 33.00

4-2

5441037400
ref: 4-2
E24

SHOE,BRAKE (MCA)

€ 26.00

5

0944307001
ref: 5

SPRING(L:34)

€ 2.00

6

5444129304
ref: 6

CAM,FRONT BRAKE

€ 12.00

7

0928014003
ref: 7

O-RING (D:2.4 ID:13.8)

€ 3.50

8

0916014001
ref: 8

WASHER (14.5X22X1.6)

€ 2.50

9

5445146110
ref: 9

LEVER,FR BRAKE CAM

€ 6.50

10

0151706358
ref: 10

BOLT 6X35

€ 3.00

11

0915906017
ref: 11

NUT

€ 1.50

12

5461107002
ref: 12

GEAR,SPEEDOMETER(NT:24)

€ 16.50

13

5462139202
ref: 13

PINION,SPEEDOMETER(NT:9)

€ 31.50

14-1

5463201001
ref: 14-1
FOR 54210-05300

BUSH,METER GEAR OUTER

€ 8.50

14-2

5463202201
ref: 14-2
FOR 54210-05301

BUSH,SPEEDOMETER PINION OUTER

€ 7.00

15

0916005001
ref: 15

WASHER (5.1X9X0.4)

€ 2.00

16

5466107000
ref: 16

DRIVER,SPEEDOMETER GEAR

€ 3.00

17

0916018002
ref: 17

WASHER(18.5X24X1)

€ 2.00

18

0913403101
ref: 18
FOR 54210-05300

SCREW

€ 1.50

19

0833131186
ref: 19

CLIP

€ 1.50

20

0918012032
ref: 20

SPACER(12.6X19X47)

€ 6.00

21

0928418001
ref: 21

OIL SEAL(17X38X5)

€ 7.00

22

0811363010
ref: 22

BEARING

€ 10.00

23

0814363017
ref: 23

BEARING

€ 22.50

24

5471141100
ref: 24

AXLE,FRONT

€ 43.50

25

5474041301
ref: 25

SPACER,FR AXLE,R

€ 5.50

26

0832201127
ref: 26

WASHER

€ 2.00

27

0831431128
ref: 27

NUT 12MM

€ 2.00

28

0411120308
ref: 28

COTTER PIN

€ 1.00

29

5510039310
ref: 29

TIRE,FRONT

€ 201.00

30

5520011601
ref: 30

TUBE,INNER

€ 24.50

31

5526111010
ref: 31

PROTECTOR,INNER TUBE

€ 3.00

32

5531105300
ref: 32

RIM,FR WHEEL 1.60X18

€ 79.00

33

5532005300
ref: 33

SPOKE SET,FRONT

€ 35.50
