FRAME

DR650RSEU 1991 (M) GERMANY (E22)

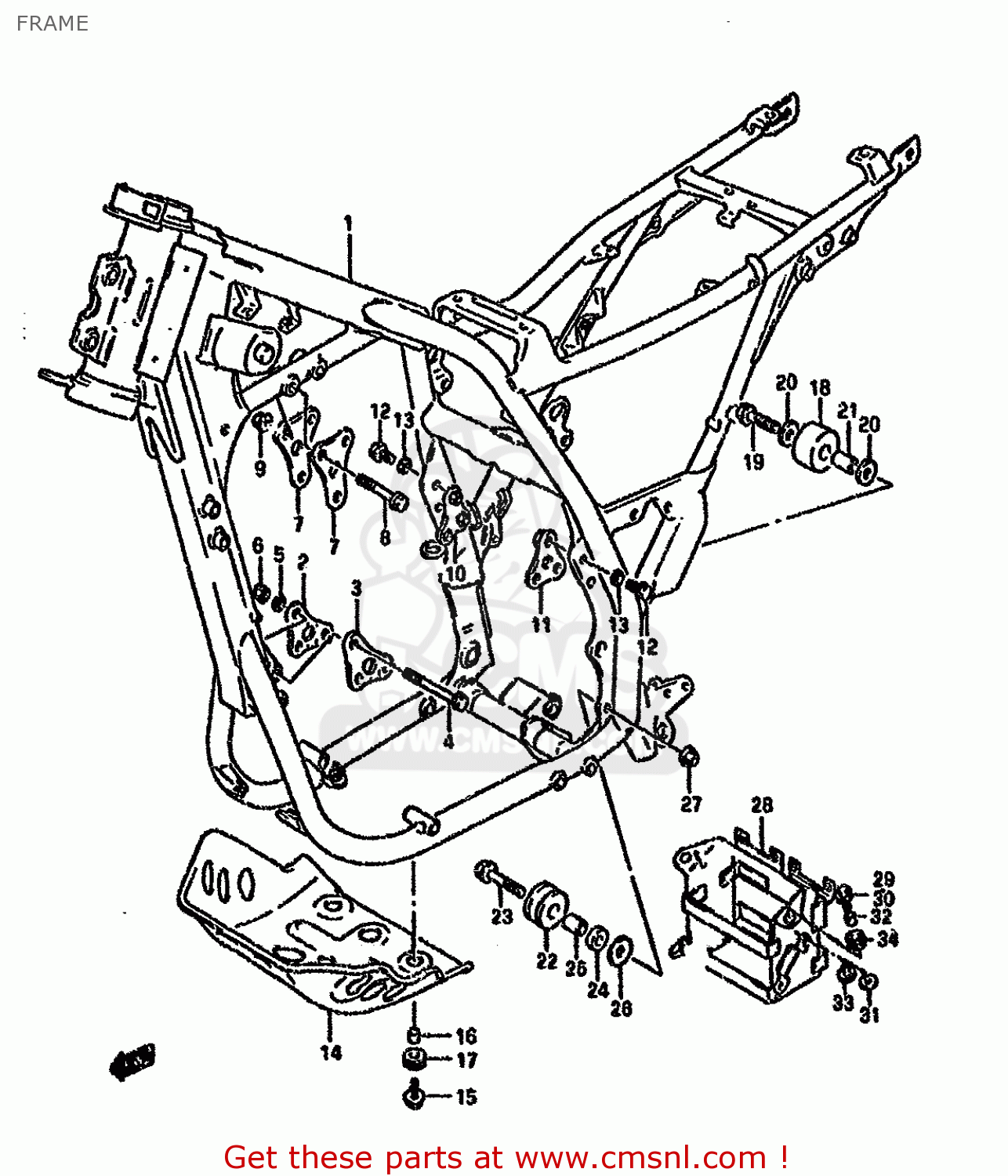

Frame Schaubild DR650RSEU 1991 (M) GERMANY (E22)

FRAME DR650RSEU 1991 (M) GERMANY (E22)
FRAME DR650RSEU 1991 (M) GERMANY (E22)
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
1-1
4110012D20ONF
ref: 1-1
MODEL M
FRAME (BLUE)
€ 0.00
1-2
4110012D2028W
ref: 1-2
MODEL M
FRAME (WHITE)
€ 1,161.00
1-3
4110012D20ONH
ref: 1-3
MODEL N
FRAME (RED)
€ 0.00
1-4
4110012D20019
ref: 1-4
MODEL N/P
FRAME (BLACK)
€ 1,841.50
1-5
4110012D221LT
ref: 1-5
MODEL N/P
FRAME (BLUE)
€ 1,841.50
1-6
4110012D22019
ref: 1-6
MODEL R/S
FRAME(BLACK)
€ 1,841.50
1-7
4110012D2224K
ref: 1-7
MODEL R/S/T
FRAME (CHARCOAL)
€ 1,841.50
2
4191112D00019
ref: 2
PLATE,ENG MTG FR,R
€ 9.00
3
4192112D00019
ref: 3
PLATE,ENG MTG FR,L
€ 9.00
4
0910308279
ref: 4
BOLT(8X72)
0910308279
€ 4.50
5-1
0832131084
ref: 5-1
MODEL M/N/P
LOCK WASHER
€ 2.50
5-2
0832101083
ref: 5-2
MODEL R/S/T
LOCK WASHER
0832101083
€ 2.50
6
0831921085
ref: 6
NUT
0831921085
€ 1.50
7-1
4199112D00019
ref: 7-1
MODEL M/N
PLATE,ENGINE MOUNTING
4199112D00019
€ 14.50
7-2
4199112D10019
ref: 7-2
MODEL P
PLATE,ENGINE MOUNTING
€ 14.50
7-3
4199112D10
ref: 7-3
MODEL R/S/T
PLATE,ENGINE MOUNTING,UPPER
€ 14.50
8
0910308289
ref: 8
BOLT(8X50)
0910308289
€ 4.50
9
0831931085
ref: 9
NUT
€ 2.00
10
4194012D00019
ref: 10
PLATE,ENG MTG RR,R
€ 12.00
11
4195012D01019
ref: 11
PLATE,ENG MTG RR,L
4195012D01019
€ 10.50
12
0910308266
ref: 12
BOLT(8X20)
0910308266
€ 2.50
13-1
0832131084
ref: 13-1
MODEL M/N/P
LOCK WASHER
€ 2.50
13-2
0832101083
ref: 13-2
MODEL R/S/T
LOCK WASHER
0832101083
€ 2.50
14
4251112D10
ref: 14
PROTECTOR,ENGINE
€ 279.00
15
0911806087
ref: 15
BOLT 6X20
€ 3.00
16
0918007005
ref: 16
SPACER (7X9X7)
0918007005
€ 2.50
17
0932008021
ref: 17
CUSHION
0932008021
€ 3.00
18
4391101B10
ref: 18
ROLLER,CHAIN CONTROL
4391101B10
€ 14.00
19
0910308083
ref: 19
BOLT(8X41)
0910308083
€ 3.00
20
0916008021
ref: 20
WASHER (8.2X24X1.6)
0916008021
€ 1.50
21
0918008136
ref: 21
SPACER (8.6X13.8X28)
0918008136
€ 9.00
22
4391135B00
ref: 22
ROLLER,CHAIN CONTROL
4391135B00
€ 13.00
23
0910308082
ref: 23
BOLT 8X50
€ 7.00
24
0918008141
ref: 24
SPACER(8.5X15X8.5)
0918008141
€ 3.50
25
0918008119
ref: 25
SPACER(8.6X12X25.5)
0918008119
€ 5.00
26
0821108201
ref: 26
WASHER
0821108201
€ 2.00
27
0831931085
ref: 27
NUT
€ 2.00
28
4154012D20
ref: 28
HOLDER,BATTERY
4154012D20
€ 46.50
29-1
0911606056
ref: 29-1
MODEL M/N/P/R/S
BOLT
0911606056
€ 2.00
29-2
0911606115
ref: 29-2
MODEL T
BOLT(6X20)
0911606115
€ 2.00
30-1
0911606047
ref: 30-1
MODEL M/N/P
BOLT(6X25)
€ 1.50
30-2
0911606093
ref: 30-2
MODEL R/S/T
BOLT(6X25)
0911606093
€ 2.00
31
0916006027
ref: 31
~F.NO.101817 E22:~F.
WASHER (6.5X20X1.2)
0916006027
€ 1.50
32-1
0918006038
ref: 32-1
~F.NO.101817 E22:~F.
SPACER(6.1X9X7.5)
0918006038
€ 1.50
32-2
0918006038
ref: 32-2
F.NO.101818~E22:F.NO
SPACER(6.1X9X7.5)
0918006038
€ 1.50
33-1
4157019C00
ref: 33-1
F.NO.101818~E22:F.NO
PLATE,BATTERY HOLDER
€ 3.00
33-2
4157047D00
ref: 33-2
MODEL T
SPACER COMP,BATTERY
€ 3.00
34
0932008021
ref: 34
CUSHION
0932008021
€ 3.00
