STAND

DL1000 VSTROM 2003 (K3) USA (E03)

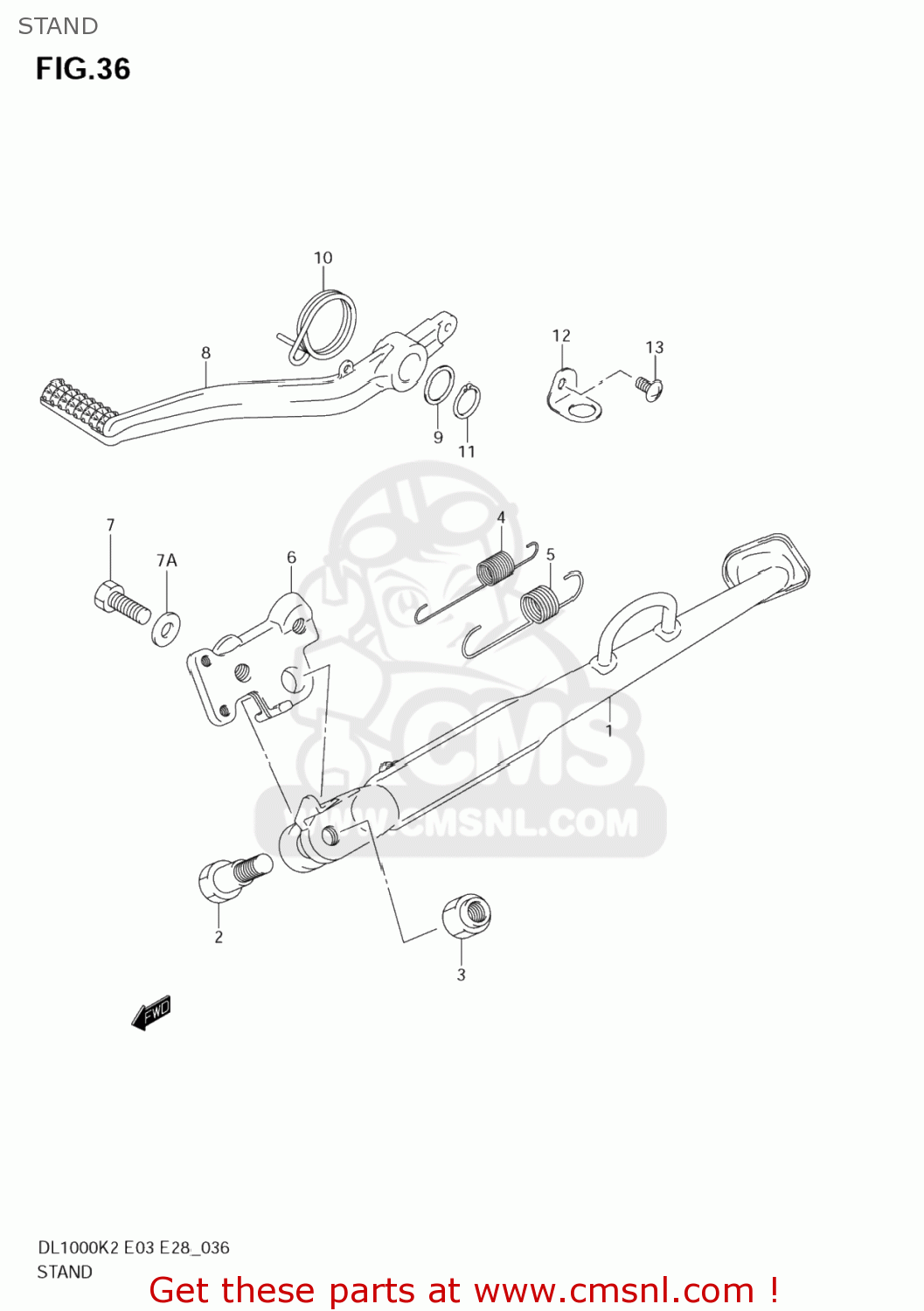

Stand Schaubild DL1000 VSTROM 2003 (K3) USA (E03)

Preise sind in EUR

ref

Teil #

Beschreibung

Anzahl

4231006G00
ref: 1

STAND,PROP

€ 129.50

0911110058
ref: 2

BOLT(10X37.5)

€ 5.00

4232103FK0
ref: 3

NUT,PROP STAND

€ 4.00

0944314058
ref: 4

SPRING

€ 4.50

0944319011
ref: 5

SPRING

€ 4.50

4233006G00
ref: 6
42330-06G01

BRACKET, PROP STAND

€ 74.50

0910012084
ref: 7

BOLT(12X30)

€ 4.00

0916012061
ref: 7A

WASHER(12.5X24X2.6)

€ 1.50

4311106G00
ref: 8

PEDAL,BRAKE

€ 102.00

0916018022
ref: 9

WASHER(18X24X1)

€ 2.50

0944841005
ref: 10

SPRING

€ 4.00

0833131186
ref: 11
08331-3118A

CLIP

€ 1.50

4325106G00
ref: 12

BRACKET,STOP LAMP SWITCH

€ 6.00

0214206123
ref: 13
02142-0612A

SCREW 6X12

€ 1.50
