STARTING MOTOR

LTF250 1993 (P)

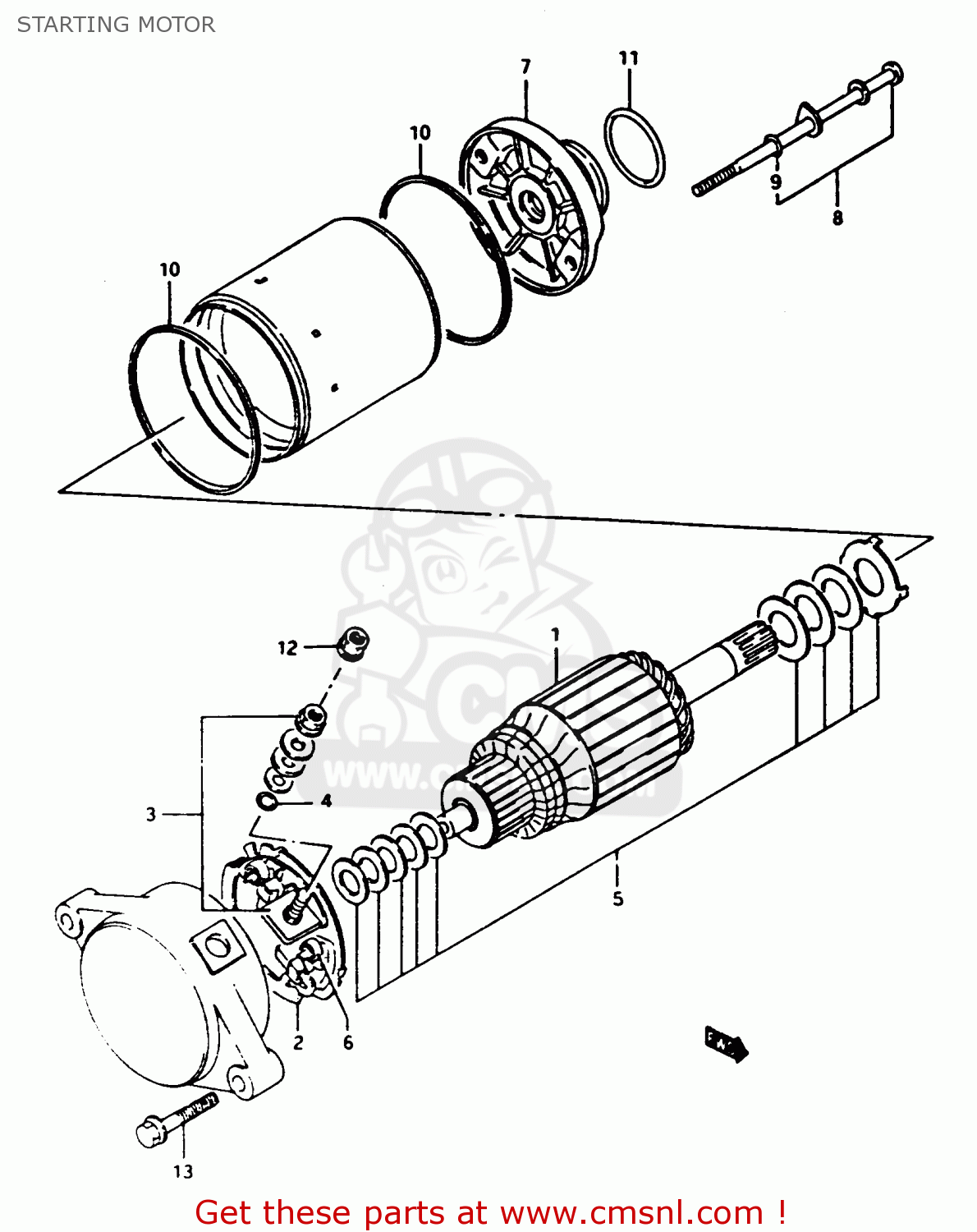

Starting motor Schaubild LTF250 1993 (P)

STARTING MOTOR LTF250 1993 (P)
STARTING MOTOR LTF250 1993 (P)
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
0
3110019B11
ref: 0
MOTOR ASSEMBLY,STARTING
€ 596.50
1-1
3131119B11
ref: 1-1
MODEL J/K/L/M
ARMATURE
€ 148.00
1-2
3131119B12
ref: 1-2
MODEL N/P/R/S/T
ARMATURE
3131119B12
€ 148.00
2
3113219B10
ref: 2
HOLDER SET,BRUSH
3113219B10
€ 27.00
3
3113019B10
ref: 3
TERMINAL SET,BRUSH,PLUS
3113019B10
€ 26.00
4
3114349040
ref: 4
O RING
3114349040
€ 3.00
5
3117019B10
ref: 5
SHIM SET,STARTING MOTOR
3117019B10
€ 8.00
6
3113531300
ref: 6
SPRING,BRUSH
3113531300
€ 4.00
7
3115019B10
ref: 7
BRACKET ASSY,FR
€ 107.00
8
3128019B10
ref: 8
BOLT SET,STARTING MOTOR
€ 8.50
9
3114349040
ref: 9
O RING
3114349040
€ 3.00
10
3126431300
ref: 10
O RING
3126431300
€ 7.50
11
0928024003
ref: 11
O RING(D:3,ID:24.5)
0928024003
€ 1.50
12
0836135068
ref: 12
NUT
0836135068
€ 2.00
13
0154706253
ref: 13
SCREW
0154706253
€ 2.00
