WIRING HARNESS

LT-R450Z QUAD RACER 2009 (K9) USA (E03) QUADRACER QUAD-RACER

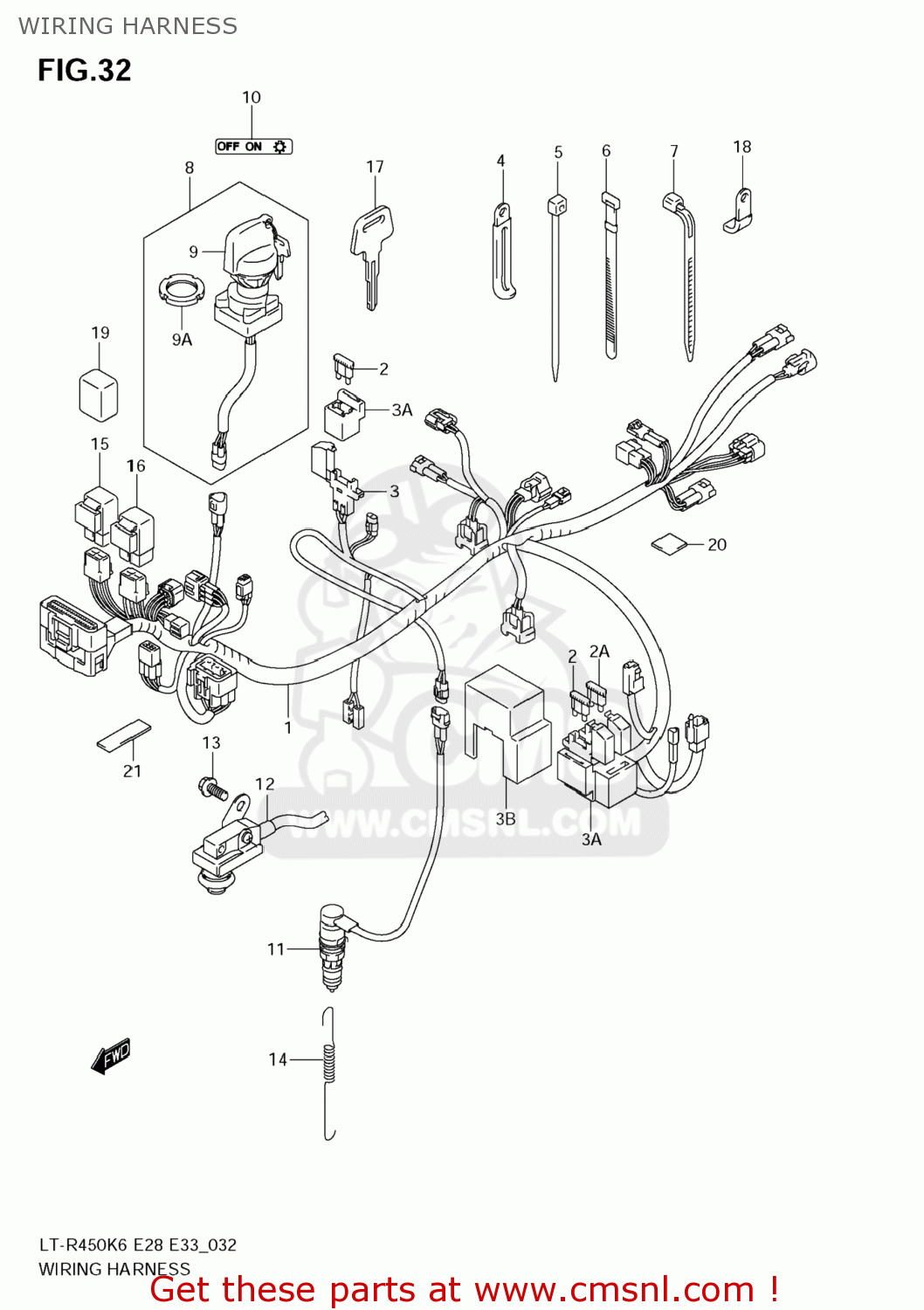

Wiring harness Schaubild LT-R450Z QUAD RACER 2009 (K9) USA (E03) QUADRACER QUAD-RACER

WIRING HARNESS LT-R450Z QUAD RACER 2009 (K9) USA (E03) QUADRACER QUAD-RACER
WIRING HARNESS LT-R450Z QUAD RACER 2009 (K9) USA (E03) QUADRACER QUAD-RACER
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
1-1
3661045G00
ref: 1-1
HARNESS,WIRING
3661045G00
€ 429.00
1-2
3661045G10
ref: 1-2
HARNESS,WIRING
3661045G10
€ 429.00
2
0948110101
ref: 2
FUSE(10A)
0948110101
€ 1.50
2A
0948120101
ref: 2A
FUSE(20A)
0948120101
€ 2.00
3
3674239D00
ref: 3
HOLDER,FUSE
€ 14.50
3A
3674245G00
ref: 3A
HOLDER
€ 11.50
3B
3671745G00
ref: 3B
COVER,FUSE
3671745G00
€ 8.00
4
0940406429
ref: 4
CLAMP(L:45)
€ 2.00
5
0940717403
ref: 5
CLAMP(L:154)
0940717403
€ 4.50
6
0940712402
ref: 6
CLAMP(L:120)
0940712402
€ 2.50
7-1
0940714403
ref: 7-1
CLAMP(L:125)
0940714403
€ 2.50
7-2
0940718402
ref: 7-2
CLAMP(L:165)
0940718402
€ 2.00
8
3711045G00
ref: 8
SWITCH ASSY,IGNITION
3711045G00
€ 79.00
9
3714219B00
ref: 9
MASCOT,KEY
3714219B00
€ 3.50
9A
3711224500
ref: 9A
NUT,IGNITION SWITCH
3711224500
€ 5.00
10
3713945G00
ref: 10
PLATE,CONTROL IDENTIFICATION
€ 2.00
11
3774045G00
ref: 11
SWITCH ASSY,STOP LAMP
3774045G00
€ 78.00
12
3774045G10
ref: 12
SWITCH ASSY,STOP LAMP
3774045G10
€ 65.00
13
021620608A
ref: 13
SCREW
021620608A
€ 1.50
14
0944306088
ref: 14
SPRING
0944306088
€ 3.50
15
3874024X50
ref: 15
RELAY ASSY
3874024X50
€ 33.50
16
3874024X50
ref: 16
RELAY ASSY
3874024X50
€ 33.50
17-1
3714619B00
ref: 17-1
KEY,BLANK(TYPE:C)
3714619B00
€ 5.00
17-2
3714619B10
ref: 17-2
KEY,BLANK(TYPE:D)
3714619B10
€ 5.00
17-3
3714619B20
ref: 17-3
KEY,BLANK(TYPE:E)
3714619B20
€ 5.00
17-4
3714619B30
ref: 17-4
KEY,BLANK(TYPE:F)
3714619B30
€ 5.00
18
3665124B00
ref: 18
CLAMP
€ 0.00
19
3661845G10
ref: 19
COVER,CONNECTOR
€ 6.50
20
3365229F00
ref: 20
PROTECTOR(30X80X1)
€ 3.00
20
3365229F00
ref: 20
PROTECTOR(30X80X1)
€ 3.00
21
3692045G00
ref: 21
PROTECTOR,WIRING HARNESS
3692045G00
€ 2.50
