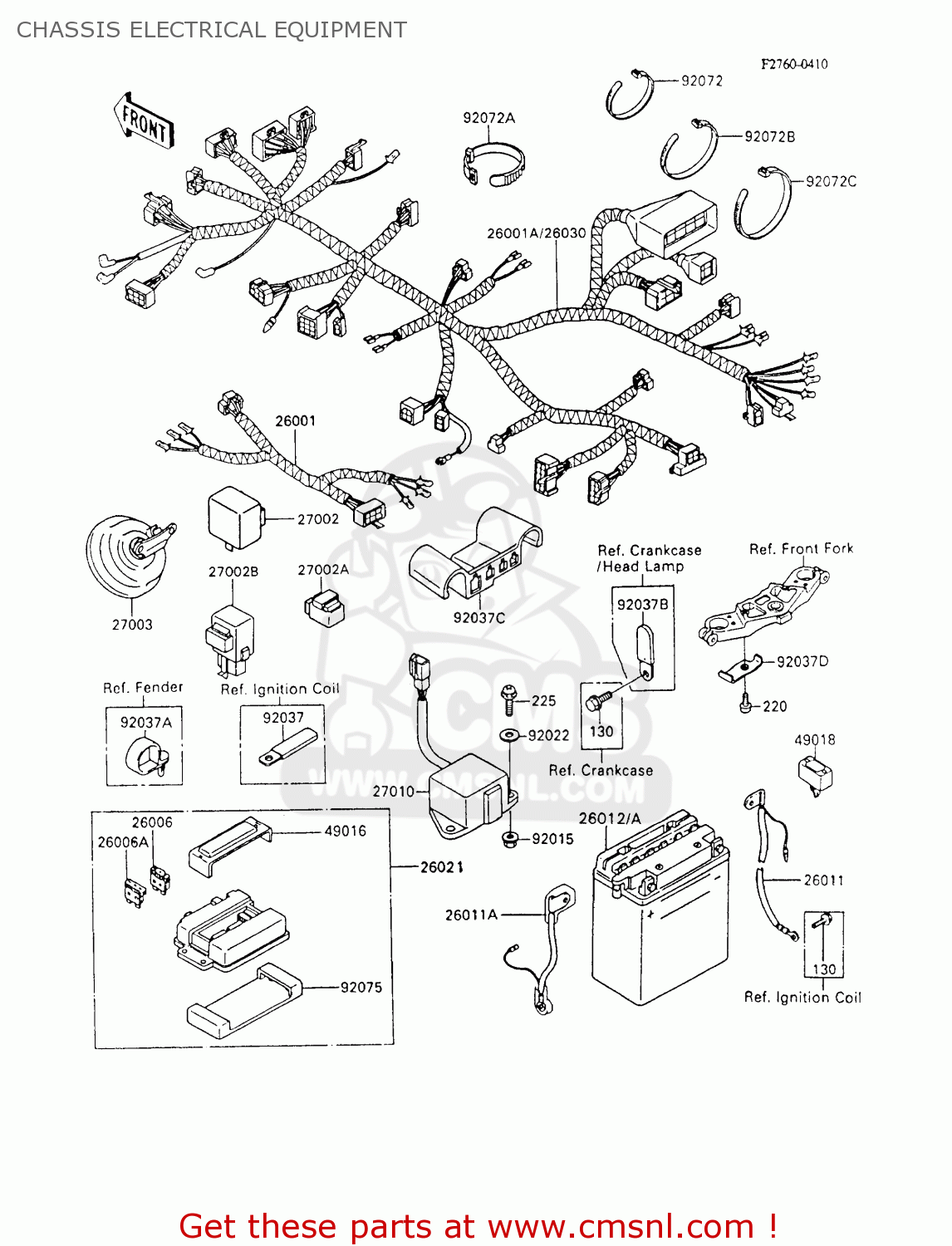

CHASSIS ELECTRICAL EQUIPMENT

ref

Teil #

Beschreibung

Anzahl

130

130B0610
ref: 130

BOLT,FLANGED,6X10

€ 0.50

220

220C0510
ref: 220

SCREW-PAN-CROS

€ 2.00

225

225B0625
ref: 225

SCREW-PAN-WSP-CROS

€ 0.50

26001

260011854
ref: 26001

HARNESS,FRONT

€ 19.00

26001A

260011939
ref: 26001A

HARNESS,MAIN

€ 179.50

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111195
ref: 26011

WIRE-LEAD,BATTERY GRO

€ 13.50

26011A

260111408
ref: 26011A

WIRE-LEAD,BATTERY(+)

€ 19.50

26012

260121217
ref: 26012

BATTERY, 12V 12AH

€ 84.00

26021

260211077
ref: 26021

UNCTION BOX

€ 148.00

27002A

270021062
ref: 27002A

RELAY-ASSY

€ 25.50

27002B

270021063
ref: 27002B

RELAY-ASSY,SIGNAL LAM

€ 46.00

27003

270031265
ref: 27003

HORN

€ 44.50

27010

270101069
ref: 27010

SWITCH,RESERVE LIGTIN

€ 106.00

49016

490161125
ref: 49016

COVER-SEAL,FUSE

€ 5.50

49018

490181055
ref: 49018

DIODE

€ 12.00

92015

920151367
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371163
ref: 92037A

CLAMP,HARNESS,REAR

€ 4.00

92037B

920371539
ref: 92037B

CLAMP,L=45

€ 3.00

92037C

920371899
ref: 92037C

CLAMP,HARNESS

€ 8.00

92037D

920371916
ref: 92037D

CLAMP,HARNESS

€ 3.00

92072

92072031
ref: 92072

BAND,MIDDLE

€ 3.00

92072A

92072056
ref: 92072A

BAND,RUBBER

€ 3.00

92072B

920721195
ref: 92072B

BAND,L=185

€ 1.00

92072C

920721197
ref: 92072C

BAND

€ 5.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.00
