Ihr Online-Teilekatalog

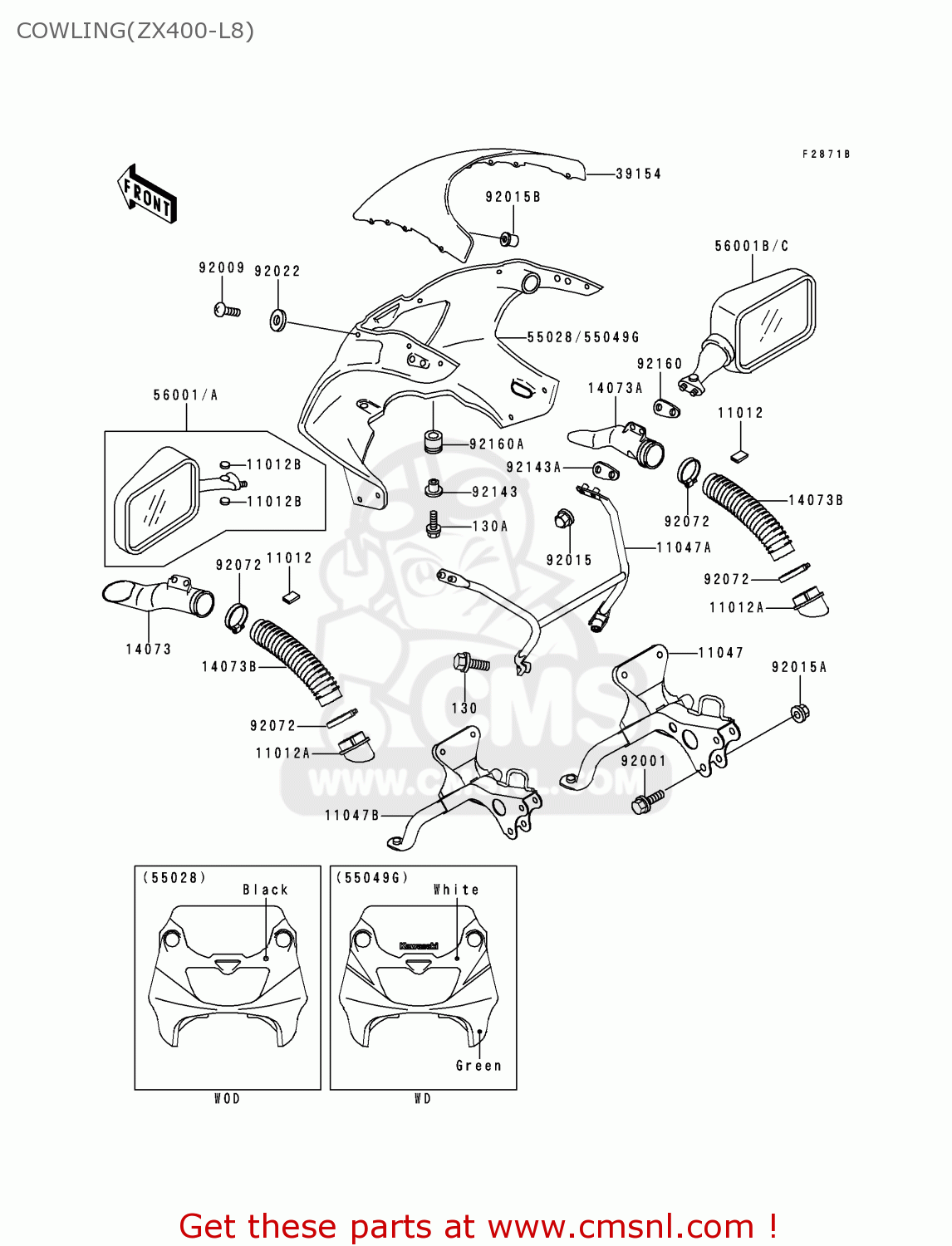

COWLING(ZX400-L8)

ZX400L8 ZXR400 1998 UNITED KINGDOM NL AR FG IT

Cowling(zx400-l8) Schaubild ZX400L8 ZXR400 1998 UNITED KINGDOM NL AR FG IT

COWLING(ZX400-L8) ZX400L8 ZXR400 1998 UNITED KINGDOM NL AR FG IT
COWLING(ZX400-L8) ZX400L8 ZXR400 1998 UNITED KINGDOM NL AR FG IT
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
11012
110121725
ref: 11012
CAP
110121725
€ 2.00
11012A
110121782
ref: 11012A
CAP,FRESH AIR INTAKE
€ 17.50
11012B
110121818
ref: 11012B
CAP,MIRROR
110121818
€ 2.00
11047
110471318
ref: 11047
UK
BRACKET,UPP COWLING
110471318
€ 209.00
11047A
110471319
ref: 11047A
BRACKET,MIRROR
€ 77.00
11047B
110471634
ref: 11047B
ARFGITNL
BRACKET,UPP COWLING
110471634
€ 241.00
14073
140731483
ref: 14073
DUCT,FRESH AIR INTAKE
140731483
€ 28.00
14073A
140731484
ref: 14073A
DUCT,FRESH AIR INTAKE
€ 29.00
14073B
140731485
ref: 14073B
DUCT,FRESH AIR INTAKE
140731485
€ 27.50
39154
391541118
ref: 39154
WINDSHIELD
€ 175.50
55028
55028126720
ref: 55028
COWLING,UPP,P.P.BLACK
€ 724.00
55049G
550495344CK
ref: 55049G
COWLING.,UPP,GREEN/WH
€ 724.00
56001
5600113766C
ref: 56001
MIRROR-ASSY,LH,EBONY
5600113766C
€ 76.00
56001A
5600113766F
ref: 56001A
MIRROR-ASSY,LH,P.WHIT
5600113766F
€ 74.50
56001B
5600113776C
ref: 56001B
MIRROR-ASSY,RH,EBONY
5600113776C
€ 76.00
56001C
5600113776F
ref: 56001C
MIRROR-ASSY,RH,P.WHIT
5600113776F
€ 74.50
92001
920011612
ref: 92001
BOLT,FLANGED,8X40,BLA
920011612
€ 3.00
92009
920091654
ref: 92009
SCREW
920091654
€ 0.50
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92015A
920151174
ref: 92015A
NUT,CAP,8MM,BLACK
920151174
€ 3.00
92015B
920151757A
ref: 92015B
NUT,5MM
920151757A
€ 4.50
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92072
920721091
ref: 92072
BAND
920721091
€ 13.50
92143
921431026
ref: 92143
COLLAR
921431026
€ 4.00
92143A
921431352
ref: 92143A
COLLAR,MIRROR
921431352
€ 3.50
92160
921601089
ref: 92160
DAMPER,MIRROR
921601089
€ 4.00
130
130J0614
ref: 130
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
130A
130J0620
ref: 130A
BOLT-FLANGED,6X20
€ 2.00
92160A
921601141
ref: 92160A
DAMPER
921601141
€ 2.50
