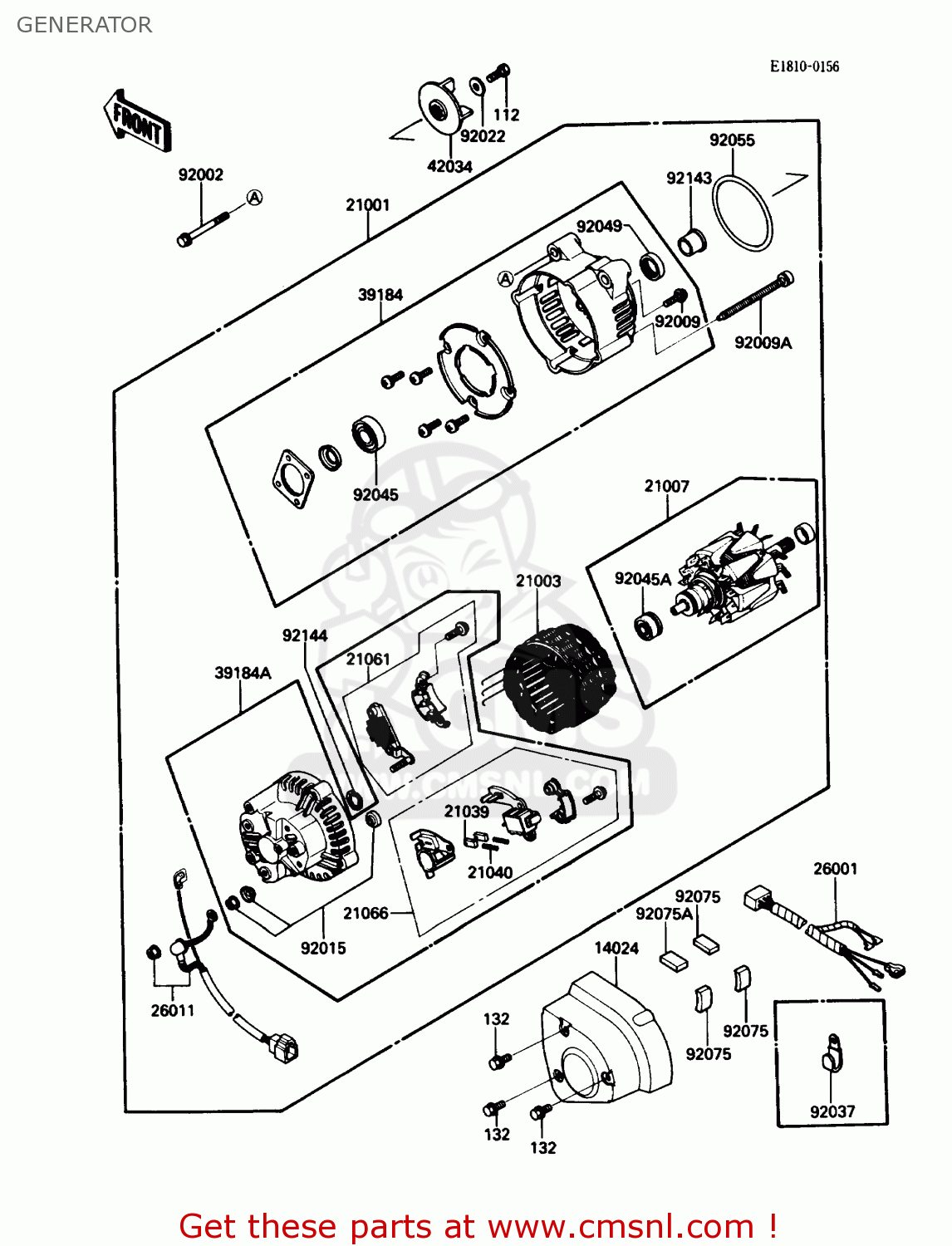

GENERATOR

ref

Teil #

Beschreibung

Anzahl

112

112G0616
ref: 112

BOLT UPSET,6X16

€ 1.00

132

132E0610
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

14024

140241294
ref: 14024

GENERATOR COVER

€ 27.00

21001

210011083
ref: 21001

GENERATOR

€ 1,247.00

21003

210031162
ref: 21003

STATOR,GENERATOR

€ 560.00

21007

210071152
ref: 21007

ROTOR,GENERATOR

€ 489.00

21039

210391058
ref: 21039

BRUSH,CARBON

€ 18.00

21040

210401054
ref: 21040

SPRING-BRUSH

€ 4.50

21061

210611056
ref: 21061

RECTIFIER

€ 296.50

21066

210661062
ref: 21066

REGULATOR-VOLTAGE

€ 423.00

26001

260011761
ref: 26001

HARNESS

€ 22.00

26011

260111379
ref: 26011

GENERATOR WIRE LEAD

€ 42.50

39184

391841063
ref: 39184

BRACKET-ASSY,FR

€ 98.00

39184A

391841064
ref: 39184A

BRACKET-ASSY,RR

€ 824.00

42034

420341084
ref: 42034

COUPLING

€ 50.00

92002

920021658
ref: 92002

BOLT,8X45

€ 5.50

92009

920091451
ref: 92009

SCREW

€ 5.50

92009A

920091452
ref: 92009A

SCREW

€ 6.50

92015

920151624
ref: 92015

NUT

€ 10.50

92022

920221517
ref: 92022

WASHER,6X19.5X2

€ 1.50

92037

920371539
ref: 92037

CLAMP,L=45

€ 3.00

92045

920451181
ref: 92045

BEARING-BALL

€ 55.00

92045A

920451182
ref: 92045A

BALL BEARING

€ 64.50

92049

920491274
ref: 92049

SEAL-OIL

€ 31.50

92055

920551365
ref: 92055

RING-O

€ 24.50

92075

920751866
ref: 92075

DAMPER

€ 2.50

92075A

920751867
ref: 92075A

DAMPER

€ 2.50

92143

921431054
ref: 92143

COLLAR

€ 6.50

92144

921441067
ref: 92144

SPRING,WASHER

€ 3.00
