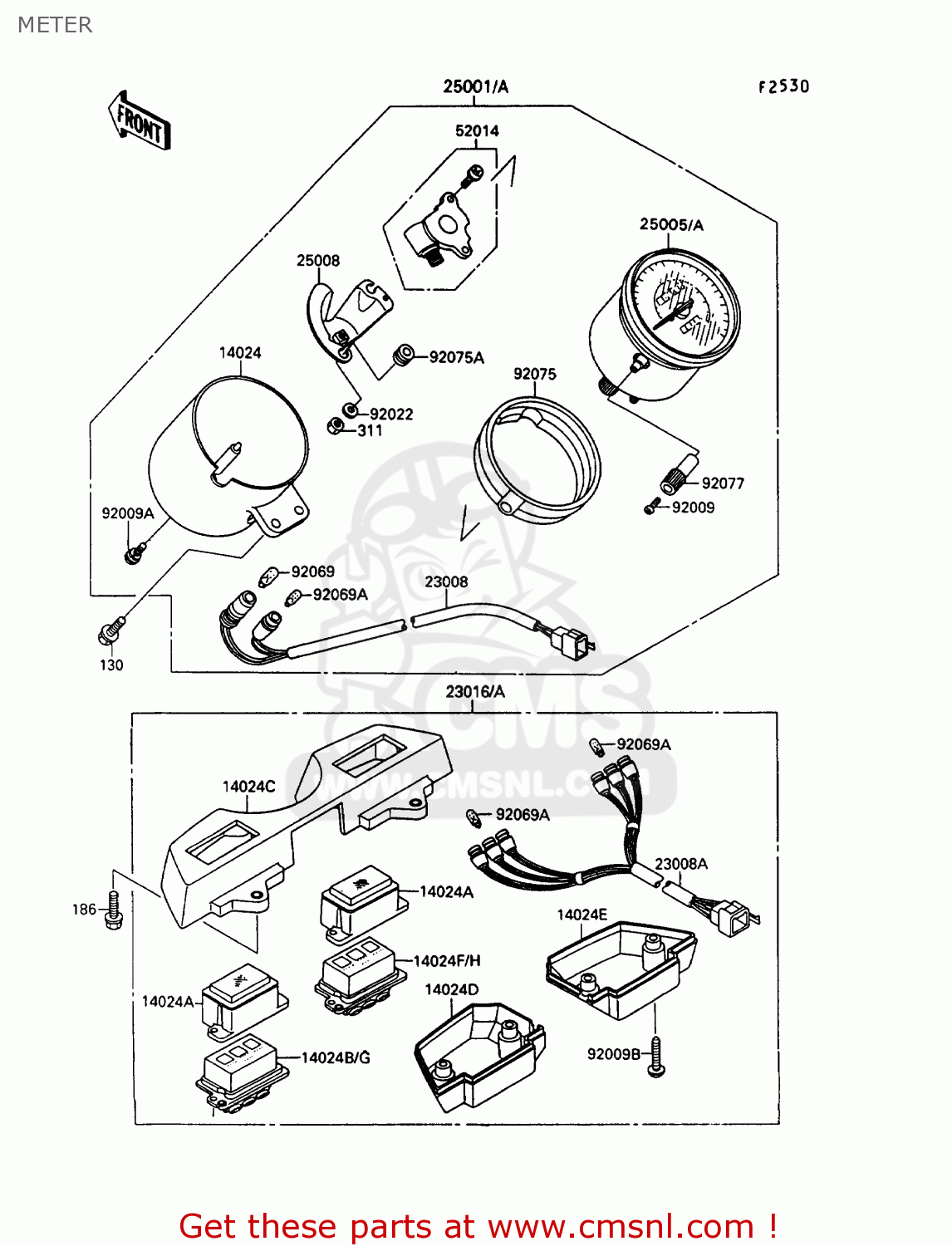

METER

ref

Teil #

Beschreibung

Anzahl

130

130B0616
ref: 130

BOLT-FLANGED,6X16

€ 0.50

186

186B0518
ref: 186

BOLT-UPSET-WP,5X18

€ 2.00

311

311B0400
ref: 311

NUT-HEX,4MM

€ 0.50

14024

140241504
ref: 14024

COVER,METER,LWR

€ 281.00

14024A

140241505
ref: 14024A

COVER,PILOT BOX,UPP

€ 7.00

14024B

140241506
ref: 14024B
AREUFGITSTUK

COVER,PILOT BOX,LH,LW

€ 27.00

14024C

140241524
ref: 14024C

COVER,PILOT BOX,UPP

€ 28.00

14024D

140241525
ref: 14024D

COVER,PILOT BOX,LH,LW

€ 20.50

14024E

140241526
ref: 14024E

COVER,PILOT BOX,RH,LW

€ 20.50

14024F

140241672
ref: 14024F
AREUFGITSTUK

COVER,PILOT BOX,RH,LW

€ 44.50

14024G

140241673
ref: 14024G
FRNRSD

COVER,PILOT BOX,LH,LW

€ 55.00

14024H

140241674
ref: 14024H
FRNRSD

COVER,PILOT BOX,RH,LW

€ 49.00

23008

230081340
ref: 23008

SOCKET-ASSY,METER

€ 18.50

23008A

230081377
ref: 23008A

SOCKET-ASSY,PILOT BOX

€ 50.00

23016

230161096
ref: 23016
AREUFGITSTUK

LAMP-ASSY,PILOT BOX

€ 470.00

23016A

230161101
ref: 23016A
FRNRSD

LAMP-ASSY,PILOT BOX

€ 331.00

25001

250011697
ref: 25001
AREUFGFRITNRSDST

METER-ASSY,KPH

€ 1,365.50

25001A

250011722
ref: 25001A
UK

METER-ASSY,MPH

€ 881.00

25005

250051368
ref: 25005
AREUFGFRITNRSDST

SPEEDOMETER,KPH

€ 365.00

25005A

250051385
ref: 25005A
UK

SPEEDOMETER,MPH

€ 291.00

25008

250081139
ref: 25008

BRACKET-METER

€ 23.00

52014

520141006
ref: 52014

ELBOW,SPEEDOMETER GEA

€ 35.00

92009

920091172
ref: 92009

SCREW,2X6,BLACK

€ 2.00

92009A

920091478
ref: 92009A

SCREW,5X10

€ 2.00

92009B

920091485
ref: 92009B

SCREW,TAPPING,4X25

€ 2.00

92022

920221888
ref: 92022

WASHER,4.3X12.5X1

€ 1.00

92069

920691007
ref: 92069

BULB,12V3.4W

€ 2.50

92069A

920691068
ref: 92069A

BULB,14V 3W

€ 2.50

92075

920751953
ref: 92075

DAMPER,SHOCK,METER

€ 16.50

92075A

920751956
ref: 92075A

DAMPER,METER FITTING

€ 4.50

92077

920771077
ref: 92077

KNOB,METER

€ 5.00

alle Baugruppen
