FRONT FORK

KX250R8F 2008 EUROPE

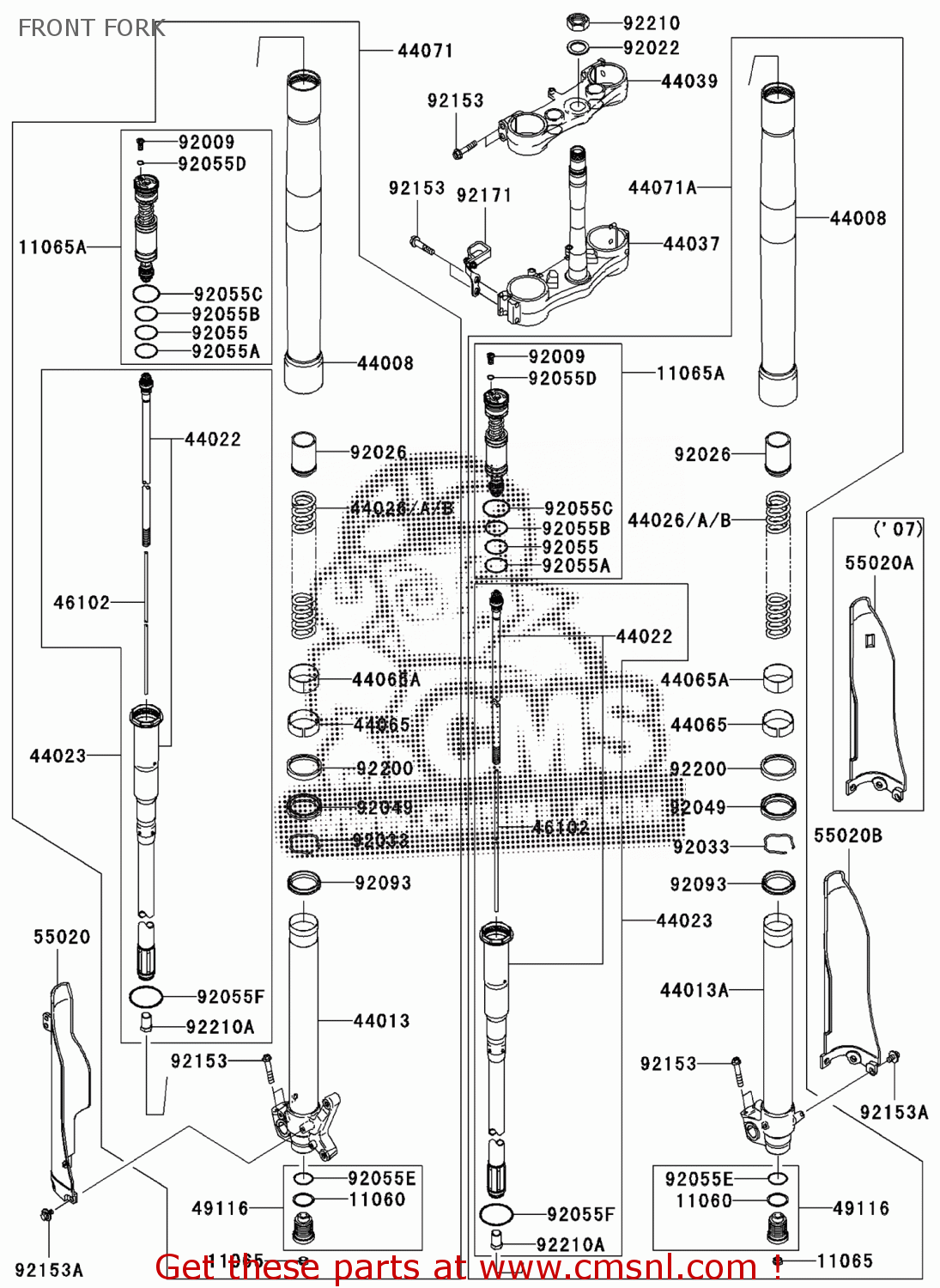

Front fork Schaubild KX250R8F 2008 EUROPE

FRONT FORK KX250R8F 2008 EUROPE
FRONT FORK KX250R8F 2008 EUROPE
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
11060
110601707
ref: 11060
GASKET (NAS)
110601707
€ 3.00
11065
110650097
ref: 11065
CAP
110650097
€ 3.50
44008
440080022828
ref: 44008
PIPE-FORK OUTER,GOLD
€ 473.00
44013
440130047
ref: 44013
PIPE-FORK INNER,LH
€ 207.00
44022
440220013
ref: 44022
CYLINDER-FORK
440220013
€ 446.00
44023
440230034
ref: 44023
CYLINDER-SET-FORK
€ 798.50
44026
440260052
ref: 44026
SPRING-FRONT FORK,K=4
440260052
€ 66.00
44037
44037003110Y
ref: 44037
HOLDER-FORK UNDER,M.M
€ 380.00
44039
44039001710Y
ref: 44039
HOLDER-FORK UPPER,M.M
€ 185.00
44065
440650006
ref: 44065
BUSHING-FRONT FORK
€ 13.00
44071
440710363828
ref: 44071
DAMPER-ASSY,FORK,LH,G
€ 1,178.50
46102
461020072
ref: 46102
ROD
€ 438.50
49116
491160011
ref: 49116
VALVE-ASSY
491160011
€ 164.50
55020
550200172RZ
ref: 55020
GUARD,FORK,LH,WHITE
550200172RZ
€ 42.50
92009
920091884
ref: 92009
SCREW
920091884
€ 4.50
92022
92022250
ref: 92022
WASHER,PLAIN
92022250
€ 3.00
92026
920260072
ref: 92026
SPACER
€ 27.00
92033
920331329
ref: 92033
RING-SNAP
920331329
€ 4.00
92049
920490070
ref: 92049
SEAL-OIL
920490070
€ 16.50
92055
920550071
ref: 92055
RING-O
920550071
€ 3.50
92093
920931566
ref: 92093
SEAL,FORK OUTER TUBE
920931566
€ 14.00
92153
921530484
ref: 92153
BOLT,FLANGED,8X40
921530484
€ 2.00
92171
921710414
ref: 92171
CLAMP,HOSE
921710414
€ 14.00
92200
922000067
ref: 92200
WASHER
922000067
€ 8.50
92210
922100066
ref: 92210
NUT,24MM
922100066
€ 8.00
11065A
110650139
ref: 11065A
CAP
€ 321.00
44013A
440130048
ref: 44013A
PIPE-FORK INNER,RH
€ 240.00
44026A
440260054
ref: 44026A
SPRING-FRONT FORK,K=4
440260054
€ 66.00
44026B
440260056
ref: 44026B
SPRING-FRONT FORK,K=4
€ 66.00
44065A
440651140
ref: 44065A
BUSHING-FRONT FORK
440651140
€ 14.00
44071A
440710364828
ref: 44071A
DAMPER-ASSY,FORK,RH,G
€ 1,178.50
55020B
550200334RZ
ref: 55020B
GUARD,FORK,RH,WHITE
550200334RZ
€ 39.00
92055A
920550072
ref: 92055A
RING-O
€ 3.50
92055B
920550075
ref: 92055B
RING-O
€ 6.00
92055C
920550076
ref: 92055C
RING-O
€ 6.00
92055D
670B1503
ref: 92055D
O RING,3MM
670B1503
€ 2.50
92055E
920551547
ref: 92055E
RING-O,FORK VALVE
920551547
€ 2.50
92055F
920551677
ref: 92055F
RING-O
€ 6.00
92153A
921530936
ref: 92153A
BOLT,FLANGED,6X14
921530936
€ 2.00
92210A
922100196
ref: 92210A
NUT
€ 14.50
