CLUTCH

KLX110A6F KLX110 2006 USA CANADA

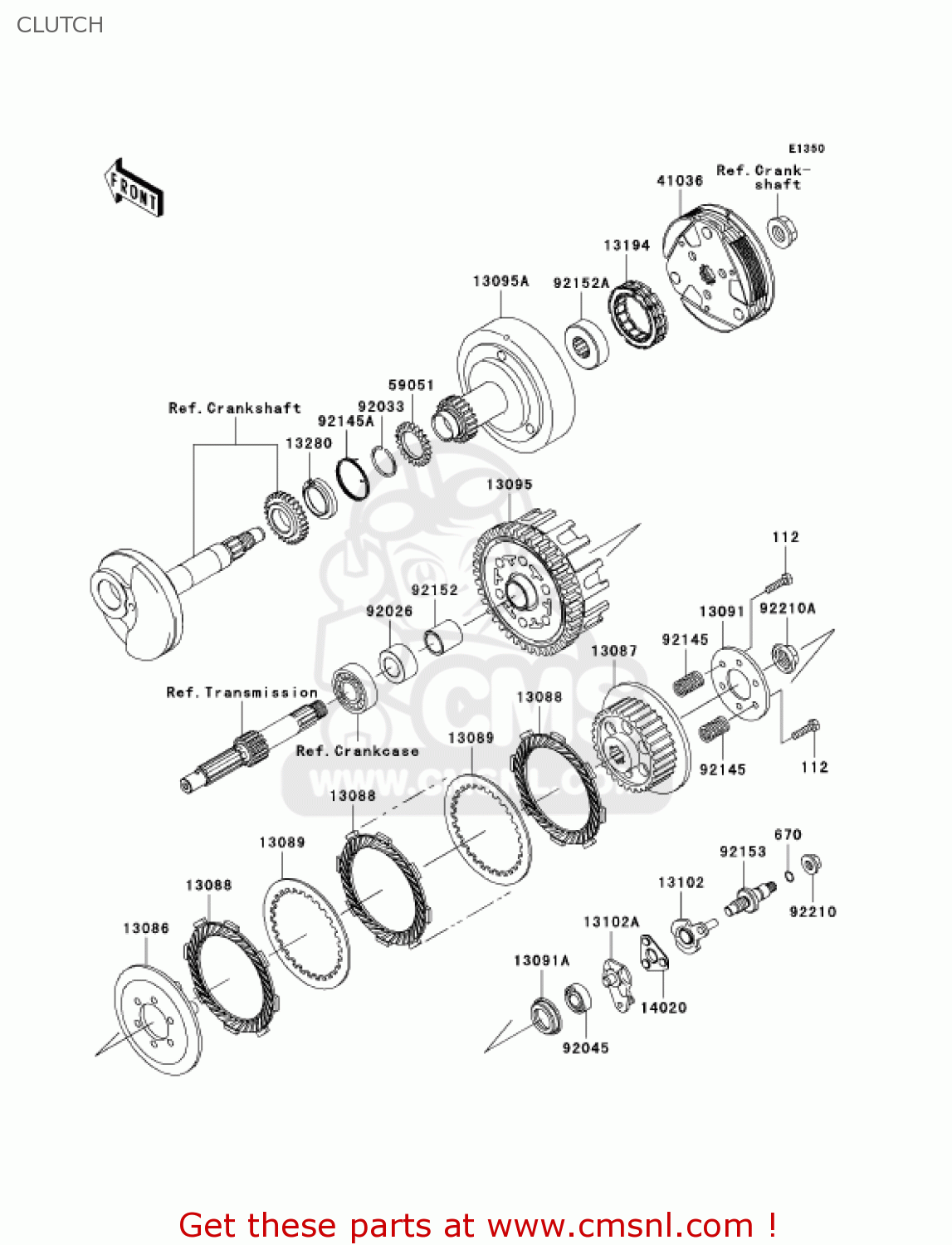

Clutch Schaubild KLX110A6F KLX110 2006 USA CANADA

CLUTCH KLX110A6F KLX110 2006 USA CANADA
CLUTCH KLX110A6F KLX110 2006 USA CANADA
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
112
112G0520
ref: 112
BOLT-UPSET
112G0520
€ 2.50
670
670B1508
ref: 670
O RING,8MM
670B1508
€ 1.00
13086
130861065
ref: 13086
WHEEL-CLUTCH
130861065
€ 21.50
13087
130871151
ref: 13087
HUB-CLUTCH
130871151
€ 33.00
13088
130881142
ref: 13088
PLATE-FRICTION (NAS)
130881142
€ 13.50
13089
130891087
ref: 13089
PLATE CLUTCH
130891087
€ 8.00
13091
130911782
ref: 13091
HOLDER,CLUTCH
€ 5.00
13091A
130911787
ref: 13091A
HOLDER
€ 8.50
13095
130951403
ref: 13095
HOUSING-COMP-CLUTCH
130951403
€ 103.50
13095A
130951422
ref: 13095A
HOUSING-COMP-CLUTCH
130951422
€ 98.50
13102
131021135
ref: 13102
RELEASE-COMP-CLUTCH
131021135
€ 39.00
13102A
131021136
ref: 13102A
RELEASE-COMP-CLUTCH
131021136
€ 39.00
13194
131941103
ref: 13194
CLUTCH-ONEWAY
131941103
€ 75.00
13280
132801250
ref: 13280
HOLDER,CLUTCH
132801250
€ 1.00
14020
140201100
ref: 14020
RETAINER
140201100
€ 13.00
41036
410361364
ref: 41036
HUB-ASSY,CLUTCH
410361364
€ 149.50
59051
590511403
ref: 59051
GEAR-SPUR,CLUTCH,22T
590511403
€ 5.00
92026
920261605
ref: 92026
SPACER
920261605
€ 3.50
92033
920331065
ref: 92033
RING-SNAP,23.5MM
920331065
€ 2.50
92045
920451123
ref: 92045
BEARING-BALL,#628
920451123
€ 22.00
92145
921451456
ref: 92145
SPRING,CLUTCH HUB
921451456
€ 1.50
92145A
921451457
ref: 92145A
SPRING,CLUTCH HOLDER
921451457
€ 1.00
92152
921520113
ref: 92152
COLLAR,17X22X22.7
€ 11.50
92152A
921521370
ref: 92152A
COLLAR,19X39.9X13
921521370
€ 8.00
92153
921530525
ref: 92153
BOLT,CLUTCH RELEASE
921530525
€ 10.00
92210
922100004
ref: 92210
NUT,FLANGED,8MM
922100004
€ 1.00
92210A
922101374
ref: 92210A
NUT,14MM
€ 6.50
