TAILLIGHT(S)

EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA

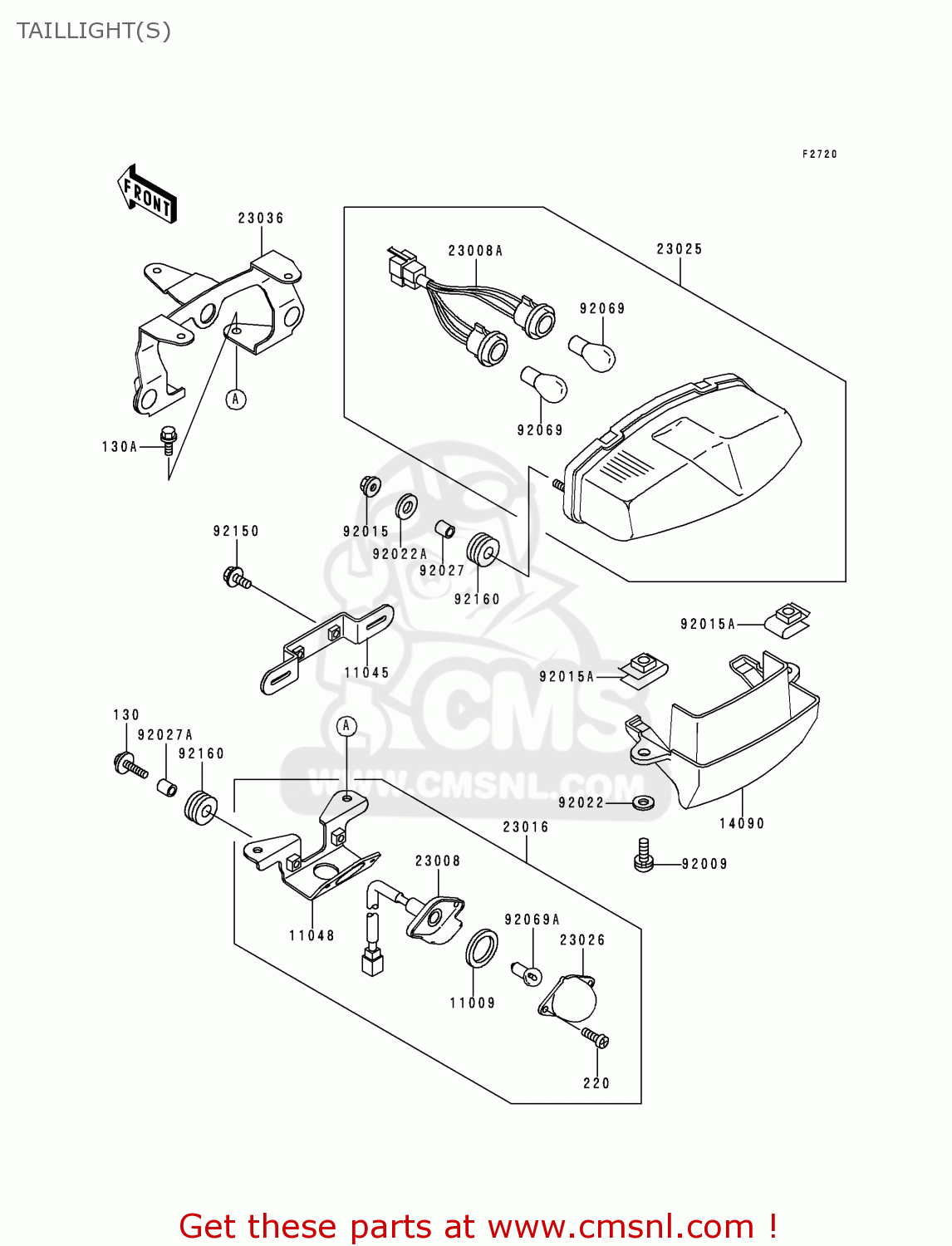

Taillight(s) Schaubild EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA

TAILLIGHT(S) EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA
TAILLIGHT(S) EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
130
130H0625
ref: 130
BOLT-FLANGED,6X25
130H0625
€ 0.50
130A
130J0612
ref: 130A
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
220
220B0410
ref: 220
SCREW-PAN-CROS
220B0410
€ 2.00
11009
110091372
ref: 11009
GASKET,LICENSE PLATE (NAS)
110091372
€ 2.50
11045
110451387
ref: 11045
BRACKET,LICENSE
110451387
€ 10.00
11048
110481338
ref: 11048
BRACKET,LICENSE PLATE
€ 14.00
14090
140901487
ref: 14090
COVER,LICENSE LAMP
140901487
€ 10.00
23008
230081221
ref: 23008
SOCKET-ASSY,LICENSE P
230081221
€ 7.00
23008A
230081413
ref: 23008A
SOCKET-ASSY,TAIL LAMP
€ 27.50
23016
230161131
ref: 23016
LAMP-ASSY,LICENSE PLA
€ 48.50
23025
230251219
ref: 23025
TAIL LAMP
€ 97.50
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
230261054
€ 6.50
23036
230361130
ref: 23036
BRACKET-TAIL LAMP
€ 12.00
92009
920091654
ref: 92009
SCREW
920091654
€ 0.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
920151367
€ 0.50
92015A
920151710
ref: 92015A
NUT
920151710
€ 4.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92022A
920221557
ref: 92022A
WASHER,6.5X20X1.6
920221557
€ 1.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
92027162
€ 4.00
92027A
92027251
ref: 92027A
COLLAR,L=13.1
92027251
€ 1.00
92069
92069059
ref: 92069
BULB,12V 32/3CP
92069059
€ 5.00
92069A
920691012
ref: 92069A
BULB,12V 8W 4CP
920691012
€ 4.50
92150
921501133
ref: 92150
BOLT,6X14
921501133
€ 2.50
92160
921601162
ref: 92160
DAMPER
921601162
€ 3.00
