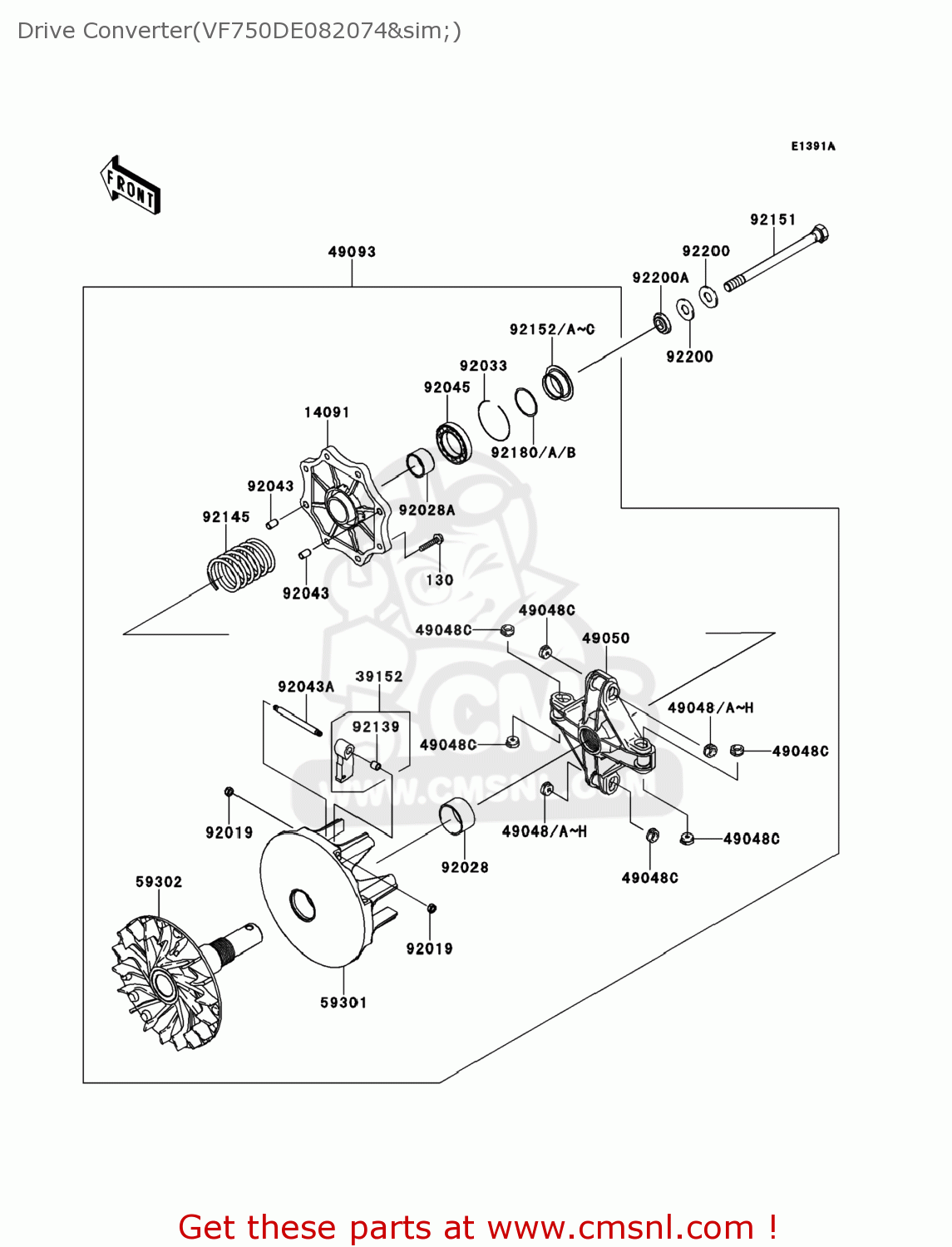

Drive Converter(VF750DE082074&sim;)

ref

Teil #

Beschreibung

Anzahl

130

130CA0630
ref: 130

BOLT-FLANGED,6X30

€ 1.50

14091

140911804
ref: 14091

COVER

€ 39.50

39152

391520034
ref: 39152

WEIGHT-RAMP

€ 41.00

49048

490481087
ref: 49048

SHOE,T=7.2

€ 10.50

49048A

490481088
ref: 49048A

SHOE,T=7.3

€ 10.50

49048B

490481089
ref: 49048B

SHOE,T=7.4

€ 10.50

49048C

490481090
ref: 49048C

SHOE,T=7.5

€ 10.50

49048D

490481091
ref: 49048D

SHOE,T=7.6

€ 10.50

49048E

490481092
ref: 49048E

SHOE,T=7.7

€ 10.50

49048F

490481093
ref: 49048F

SHOE,T=7.8

€ 10.50

49048G

490481094
ref: 49048G

SHOE,T=7.9

€ 10.50

49048H

490481095
ref: 49048H

SHOE,T=8.0

€ 10.50

49050

490500010
ref: 49050

SPIDER

€ 119.00

49093

490930040
ref: 49093

CONVERTER-ASSY-DRIVE

€ 918.00

59301

593010007
ref: 59301

SHEAVE-MOVABLE

€ 201.50

59302

593020078
ref: 59302

SHEAVE-COMP,FIXED

€ 285.50

92019

92019008
ref: 92019

NUT-LOCK,6MM

€ 3.00

92028

920281975
ref: 92028

BUSHING

€ 9.00

92028A

920281980
ref: 92028A

BUSHING

€ 5.50

92033

920330063
ref: 92033

RING-SNAP

€ 2.00

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92043A

920431688
ref: 92043A

PIN

€ 9.00

92045

920451453
ref: 92045

BEARING-BALL,6907DDG8

€ 32.50

92139

921390215
ref: 92139

BUSHING

€ 7.00

92145

921450794
ref: 92145

SPRING

€ 16.50

92151

921511393
ref: 92151

BOLT

€ 15.00

92152

921521436
ref: 92152

COLLAR,T=1.6

€ 16.50

92152A

921521437
ref: 92152A

COLLAR,T=3.0

€ 19.50

92152B

921521438
ref: 92152B

COLLAR,T=2.3

€ 18.50

92152C

921521440
ref: 92152C

COLLAR,T=3.7

€ 20.00

92180

921801378
ref: 92180

SHIM,35X40X0.10

€ 1.00

92180A

921801379
ref: 92180A

SHIM,35X40X0.20

€ 1.00

92180B

921801380
ref: 92180B

SHIM,35X40X0.30

€ 1.00

92200

922001504
ref: 92200

WASHER,SPRING

€ 2.50

92200A

922001634
ref: 92200A

WASHER

€ 6.00

alle Baugruppen
