Cylinder/Piston(s)

KVF700-A6F PRAIRIE700 2006 USA / 4X4

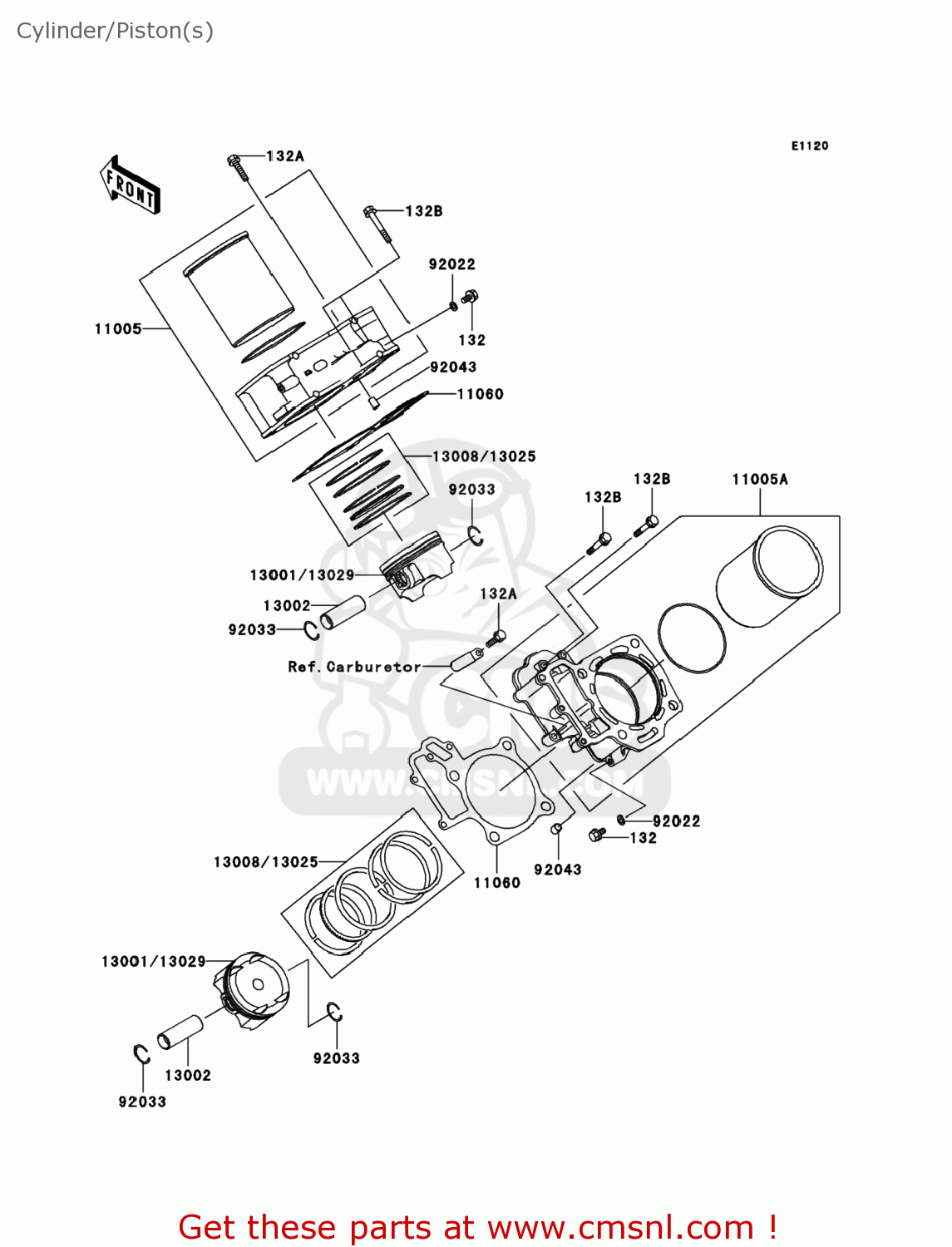

Cylinder/piston(s) Schaubild KVF700-A6F PRAIRIE700 2006 USA / 4X4

Preise sind in EUR

ref

Teil #

Beschreibung

Anzahl

11005

110051990
ref: 11005

CYLINDER-ENGINE,FR

€ 520.50

11005A

110051992
ref: 11005A

CYLINDER-ENGINE,RR

€ 520.50

11060

110601965
ref: 11060

GASKET,CYLINDER BASE (NAS)

€ 12.50

13001

130011658
ref: 13001

PISTON-ENGINE,STD

€ 109.00

13002

130021060
ref: 13002

PIN-PISTON

€ 15.50

13008

130081215
ref: 13008

RING-SET-PISTON,STD

€ 61.00

13025

130250005
ref: 13025

RING-SET-PISTON L,O/S

€ 60.00

13029

130290007
ref: 13029

PISTON-ENGINE L,O/S 0

€ 121.00

132

132Y0612
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

132Y0630
ref: 132A

BOLT-FLANGED-SMALL

€ 2.00

132B

132Y0640
ref: 132B

BOLT-FLANGED-SMALL

€ 3.50

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92033

920331207
ref: 92033

RING-SNAP

€ 1.00

92043

920434009
ref: 92043

PIN,10.1X12X14

€ 4.00
