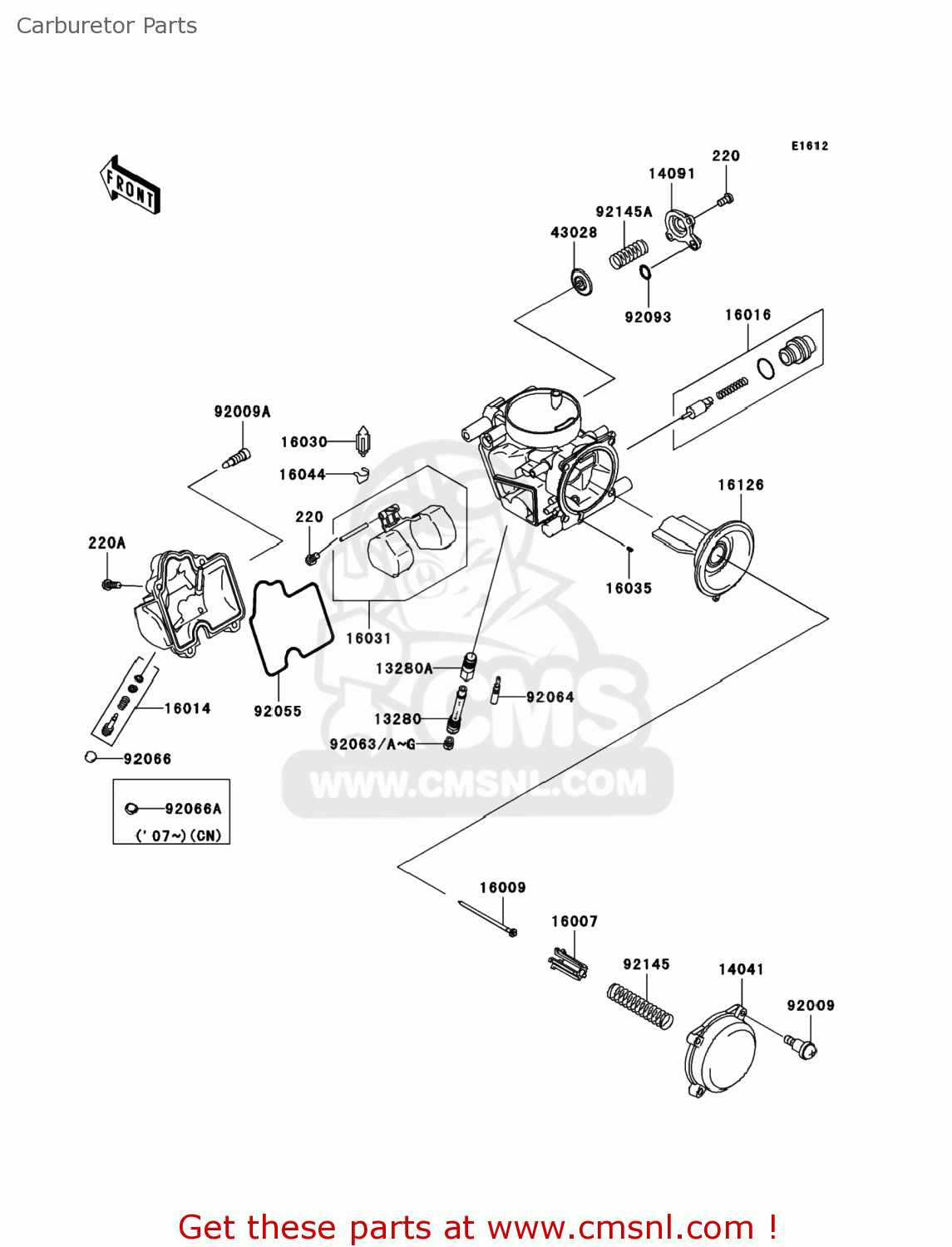

Carburetor Parts

ref

Teil #

Beschreibung

Anzahl

13280

132800185
ref: 13280

HOLDER

€ 20.00

13280A

132801096
ref: 13280A

HOLDER,JET

€ 18.00

14041

140411091
ref: 14041

CAP-CHAMBER,MIXING

€ 42.50

14091

140911246
ref: 14091

COVER,AIR CUT VALVE

€ 21.50

16007

160071117
ref: 16007

SEAT-SPRING,THROTTLE

€ 15.50

16009

160091544
ref: 16009

NEEDLE-JET,N60N

€ 26.50

16014

160141101
ref: 16014

SCREW-PILOT AIR

€ 15.00

16016

160161117
ref: 16016

PLUNGER

€ 41.50

16030

160301007
ref: 16030

FLOAT VALVE ASSY

€ 34.00

16031

160311097
ref: 16031

FLOAT

€ 41.50

16035

160351055
ref: 16035

JET-AIR,LEAK

€ 9.50

16044

16044007
ref: 16044

CLIP, FLOAT VALVE

€ 3.50

16126

161260015
ref: 16126

VALVE

€ 157.00

220

220AA0408
ref: 220

SCREW-PAN-CROS,4X8

€ 0.50

220A

220AA0414
ref: 220A

SCREW-PAN-CROS,4X14

€ 2.00

43028

430281085
ref: 43028

DIAPHRAGM,AIR CUT VAL

€ 17.00

92009

920091549
ref: 92009

SCREW,4X4.4

€ 3.00

92009A

920091551
ref: 92009A

SCREW,DRAIN

€ 6.00

92055

920551589
ref: 92055

RING-O,FLOAT

€ 21.00

92063

920631015
ref: 92063

MAIN JET,#138

€ 9.00

92063A

920631016
ref: 92063A

MAIN JET,#142

€ 8.50

92063B

920631324
ref: 92063B

JET-MAIN,#148

€ 8.50

92063C

920631330
ref: 92063C

JET-MAIN,#150

€ 8.50

92063D

920631331
ref: 92063D

JET-MAIN,#152

€ 9.00

92063E

920631332
ref: 92063E

JET-MAIN,#155

€ 9.00

92063F

920631344
ref: 92063F

JET-MAIN,#158

€ 9.00

92063G

920631345
ref: 92063G

JET-MAIN,#160

€ 9.00

92064

920640011
ref: 92064

JET-PILOT,#38

€ 12.00

92066

920661051
ref: 92066

PLUG,PILOT AIR SCREW,

€ 3.00

92066A

920663769
ref: 92066A

PLUG,PILOT AIR SCREW

€ 2.50

92093

920931046
ref: 92093

SEAL-"U"RING

€ 4.00

92145

921450267
ref: 92145

SPRING

€ 5.00

92145A

921451450
ref: 92145A

SPRING,AIR CUT VALVE

€ 5.00

alle Baugruppen
