F-21-1

XLR250R 1985 (F) JAPAN MD16-100

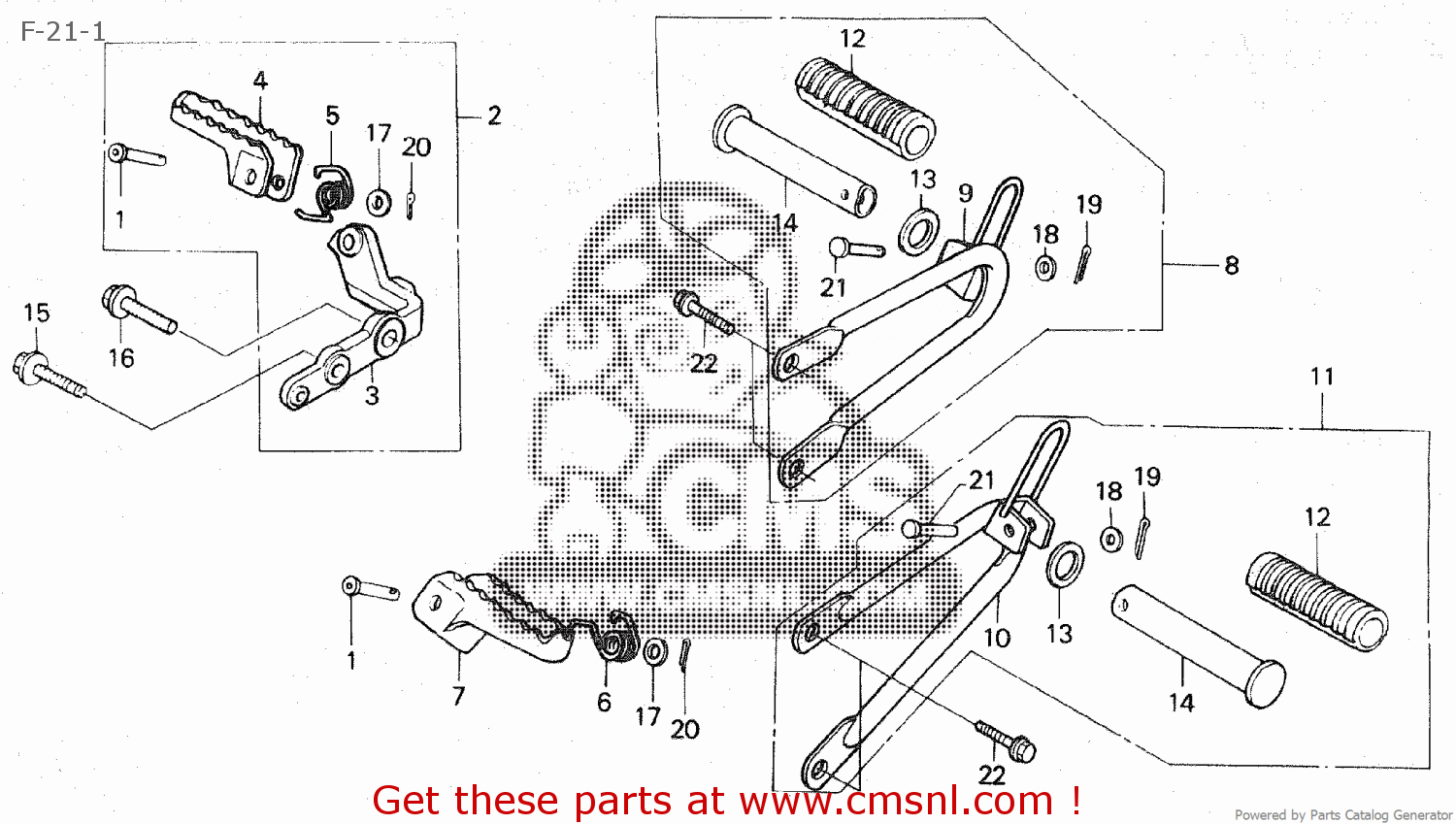

F-21-1 Schaubild XLR250R 1985 (F) JAPAN MD16-100

F-21-1 XLR250R 1985 (F) JAPAN MD16-100
F-21-1 XLR250R 1985 (F) JAPAN MD16-100
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
1
50603KV6000
ref: 1
M,M-2
PIN,STEP BAR JOIN
50603KV6000
€ 3.00
2
50610KV6010
ref: 2
M,M-2
ARM ASSY.,R.STEP
€ 63.00
3
50615KT1671
ref: 3
M,M-2
ARM,R.STEP
50615KT1671
€ 40.00
4
50616KT1670
ref: 4
M,M-2
STEP COMP.,R.
50616KT1670
€ 23.50
5
50617KT1670
ref: 5
M,M-2
SPRING,R.STEP RET
50617KT1670
€ 3.00
6
50618KT1670
ref: 6
M,M-2
SPRING,L.STEP RET
50618KT1670
€ 3.00
7
50626KT1670
ref: 7
M,M-2
STEP COMP.,L.
50626KT1670
€ 23.50
8
50700KV6670
ref: 8
M,M-2
STEP ASSY.,R.PILL
€ 63.00
9
50701KV6670
ref: 9
M,M-2
BRACKET, R.
€ 72.50
10
50702KV6670
ref: 10
M,M-2
BRACKET, L.
€ 72.50
11
50705KV6670
ref: 11
M,M-2
STEP, L. PILLION
€ 76.00
12
50710KB7000
ref: 12
M,M-2
RUB,PILLION STEP
50710KB7000
€ 6.50
13
50713KC1700
ref: 13
M,M-2
PLATE,PILLION STE
50713KC1700
€ 2.50
14
50715KB7000
ref: 14
M,M-2
BAR,PILLION STEP
50715KB7000
€ 21.50
15
90211KT1670
ref: 15
M,M-2
BOLT,FLANGE 10X40
90211KT1670
€ 3.00
16
90212KT1670
ref: 16
M,M-2
BOLT,FLANGE 12X40
90212KT1670
€ 4.00
17
90401430000
ref: 17
M,M-2
WASHER,10.2MM
90401430000
€ 3.00
18
9410106000
ref: 18
M,M-2
WASHER,PLAIN, 6MM
9410106000
€ 0.50
19
9420116150
ref: 19
M,M-2
PIN,COTTER 1.6X15
9420116150
€ 0.50
20
9420120150
ref: 20
M,M-2
PIN,COTTER 2.0X15
9420120150
€ 1.00
21
9501581000
ref: 21
M,M-2
PIN,PILLION STEP
9501581000
€ 4.00
22
963000801607
ref: 22
M,M-2
BOLT,FLANGE DR 8X
963000801607
€ 1.50
