FR. BRAKE MASTER CYLINDER

VF750C MAGNA 1994 (R) ENGLAND / MKH

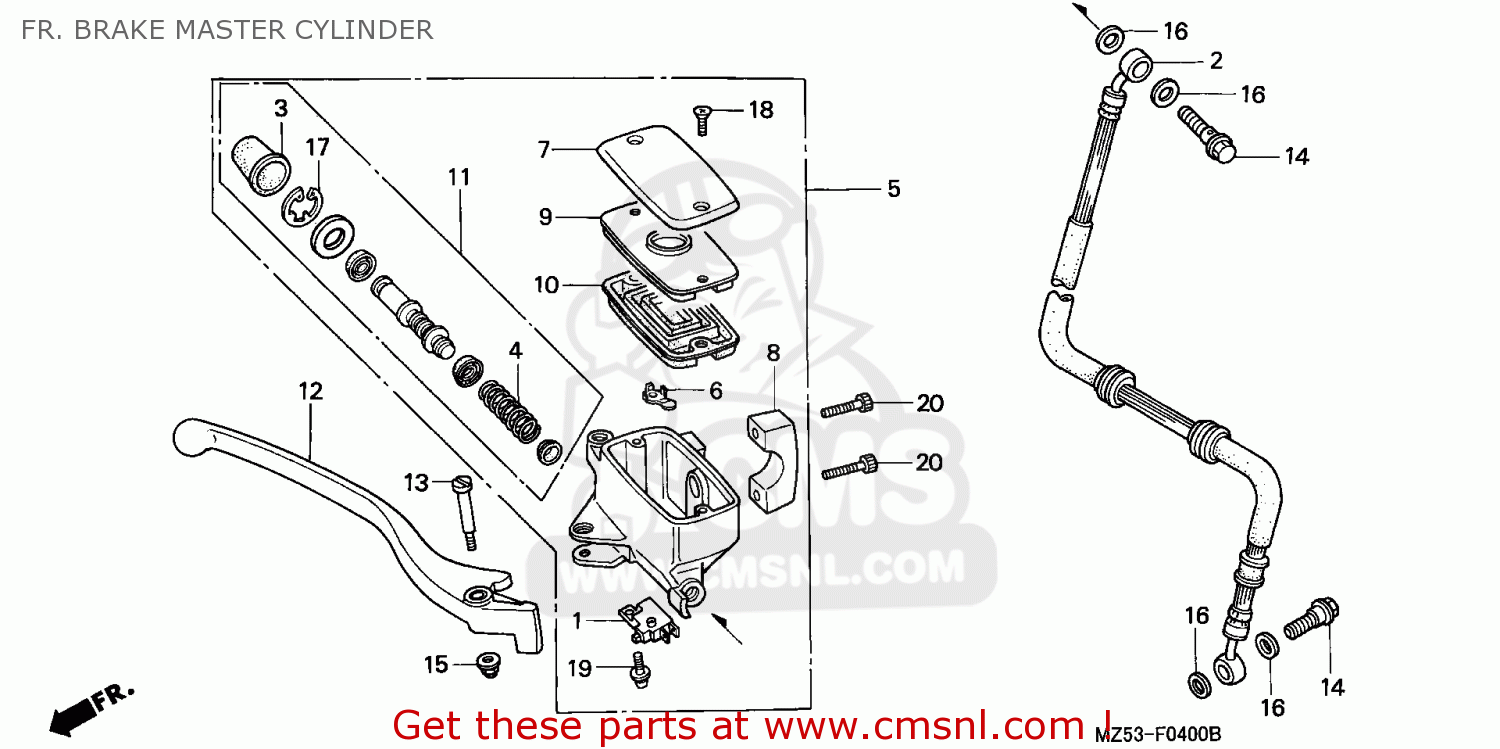

Fr. brake master cylinder Schaubild VF750C MAGNA 1994 (R) ENGLAND / MKH

Preise sind in EUR

ref

Teil #

Beschreibung

Anzahl

35340MM5600
ref: 1

SW ASSY,FR STOP

€ 26.00

45126MZ5003
ref: 2

HOSE COMP,FR BRK

€ 81.50

45504410003
ref: 3

BOOT COMP.

€ 9.50

45506KA3731
ref: 4

SPRING

€ 5.00

45510MZ8305
ref: 5

SUB ASSY,FR M/C

€ 263.00

45512MA6006
ref: 6

PROTECTOR

€ 3.50

45513MR1006
ref: 7

CAP,MASTER CYLIND

€ 32.50

45517MR1671
ref: 8

HOLDER,M/C

€ 20.50

45518MM5006
ref: 9

PLATE,DIAPHRAGM

€ 11.50

45520MM5006
ref: 10

DIAPHRAGM

€ 15.00

45530MN9305
ref: 11

CYLINDER SET,MAST

€ 53.00

53175MR1671
ref: 12

LEVER COMP.,R.HAN

€ 21.50

90114MA5671
ref: 13

BOLT,HNDL PIVOT

€ 8.50

90145MS9611
ref: 14

BOLT,OIL,10X22

€ 9.50

90201415000
ref: 15

NUT,CAP,6MM

€ 4.00

90651MA5671
ref: 17

CIRCLIP

€ 2.00

93600040121A
ref: 18

SCREW,FLAT 4X12

€ 1.00

938930401217
ref: 19

SCREW-WASHER,4X12

€ 1.00

967000602210
ref: 20

BOLT,SOCKET,6X22

€ 2.00

FR. BRAKE MASTER CYLINDER
