SEAT - REAR FENDER

SS50D GENERAL EXPORT (130515)

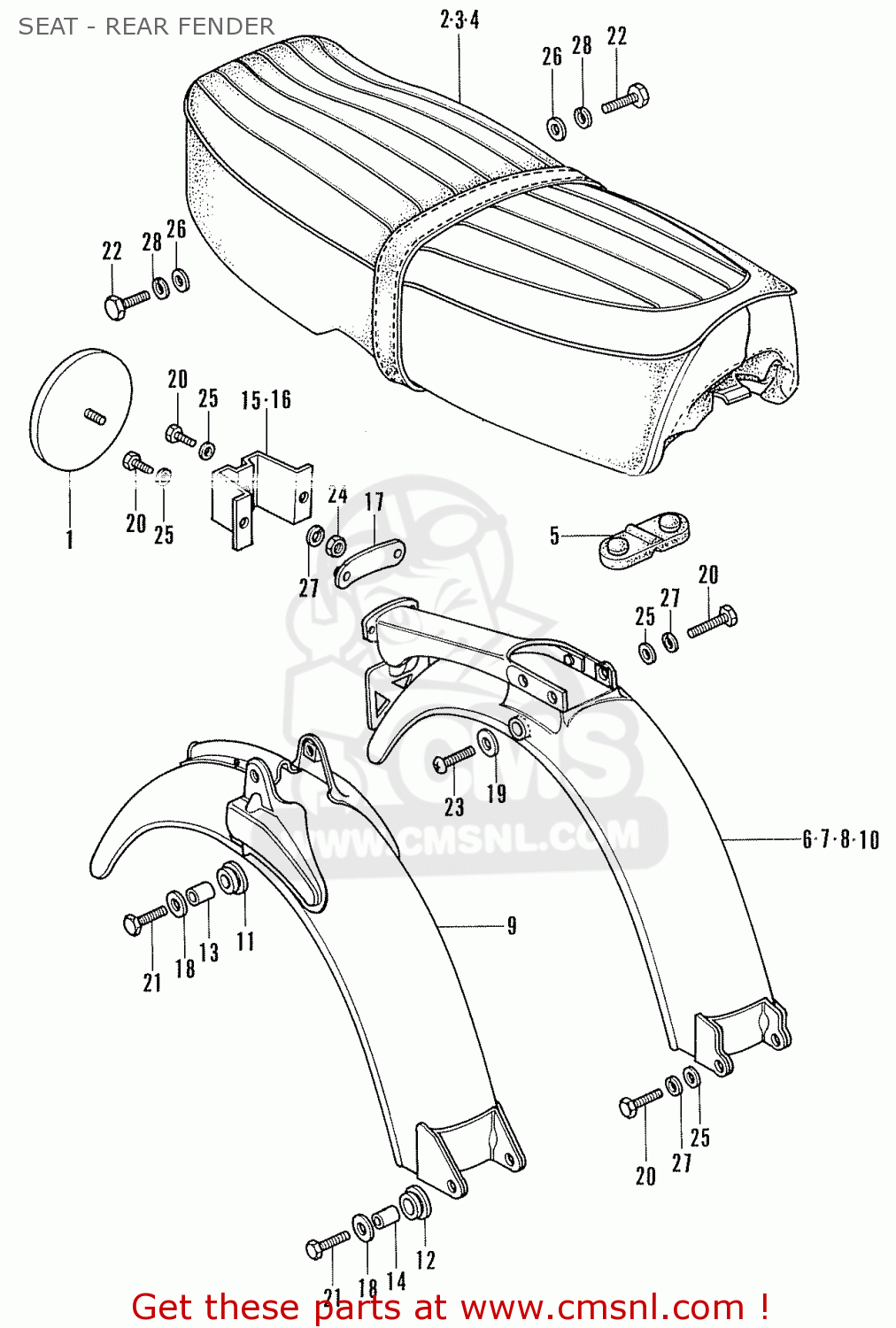

Seat - rear fender Schaubild SS50D GENERAL EXPORT (130515)

SEAT - REAR FENDER SS50D GENERAL EXPORT (130515)
SEAT - REAR FENDER SS50D GENERAL EXPORT (130515)
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
2
77200051020
ref: 2
SEAT,DUAL
€ 244.50
5
77201051000
ref: 5
RUBBER. SEAT. SET
77201051000
€ 4.50
8
80100051690XM
ref: 8
FENDER, REAR
€ 299.00
19
90520051000
ref: 19
WASHER 6.5X19
€ 0.00
20
9200006012
ref: 20
BOLT,HEX 6X12
9200006012
€ 1.00
22
9200008016
ref: 22
310591
BOLT, HEX., 8X16
9200008016
€ 1.00
22
92000080160A
ref: 22
310592
BOLT,HEX 8X16
92000080160A
€ 1.00
23
9350006010
ref: 23
SCREW,CROSS,6X10
9350006010
€ 1.00
25
9410106000
ref: 25
WASHER,PLAIN, 6MM
9410106000
€ 0.50
26
9410108000
ref: 26
WASHER,PLAIN,8MM
9410108000
€ 1.00
27
9411106000
ref: 27
WASHER,SPRING,6MM
9411106000
€ 1.00
28
9411108000
ref: 28
SPG-WASHER 8MM
9411108000
€ 1.00
22
9200008016
ref: 22
310591
BOLT, HEX., 8X16
9200008016
€ 1.00
22
92000080160A
ref: 22
310592
BOLT,HEX 8X16
92000080160A
€ 1.00
23
9350006010
ref: 23
SCREW,CROSS,6X10
9350006010
€ 1.00
25
9410106000
ref: 25
WASHER,PLAIN, 6MM
9410106000
€ 0.50
26
9410108000
ref: 26
WASHER,PLAIN,8MM
9410108000
€ 1.00
27
9411106000
ref: 27
WASHER,SPRING,6MM
9411106000
€ 1.00
28
9411108000
ref: 28
SPG-WASHER 8MM
9411108000
€ 1.00
