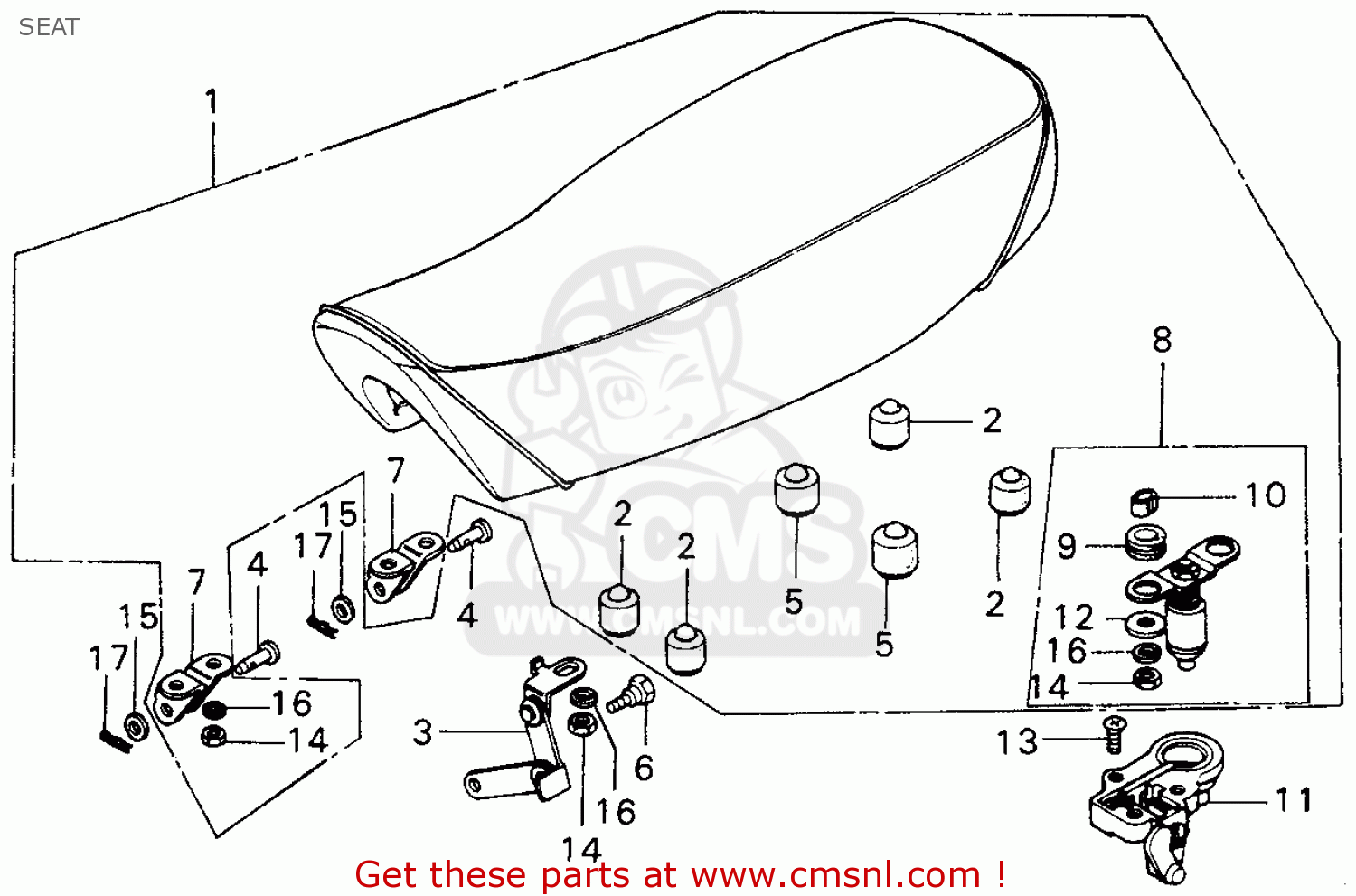

SEAT

ref

Teil #

Beschreibung

Anzahl

1

77200361670
ref: 1

SEAT ASSY.

€ 515.00

2

77201074000
ref: 2

DAMPER SEAT

€ 4.50

3

77201361000
ref: 3

HINGE ASSY., SEAT

€ 27.00

4

77203317670
ref: 4

PIN,SEAT HINGE

€ 6.00

5

77204286020
ref: 5

RUBBER,SEAT SETT.

€ 5.50

6

77204361000
ref: 6

BOLT, SEAT SET HINGE

€ 8.00

7

77205361000
ref: 7

HINGE, SEAT

€ 10.50

8

77220340003
ref: 8

BAR ASSY,SEAT LOC

€ 89.50

8

77220340010
ref: 8

BAR ASSY,SEAT LOC

€ 89.50

8

77220340011
ref: 8

BAR,SEAT LOCK

€ 89.50

9

77228340000
ref: 9

CUSHION RUBBER LO

€ 4.00

9

77228340001
ref: 9

RUBBER,LOCK CUSH.

€ 4.00

9

77228340003
ref: 9

RUBBER,LOCK BAR C

€ 4.00

10

77229340000
ref: 10

COLLAR,SEAT LOCK

€ 2.50

10

77229340001
ref: 10

COLLAR,SEAT LOCK

€ 2.50

10

77229340003
ref: 10

COLLAR,SEAT LOCK

€ 2.50

11

77230107711
ref: 11

SEAT LOCK ASSY.

€ 63.50

11

77230347003
ref: 11

LOCK ASSY.,SEAT

€ 63.50

12

90514700000
ref: 12

LOCK,WASHER TANK

€ 1.00

12

9410306800
ref: 12

WASHER,PLAIN,6MM

€ 1.00

13

93600060120G
ref: 13

SCREW,FLAT,6X12

€ 1.00

13

936000601207
ref: 13

SCREW,FLAT,6X12

€ 1.00

14

90310KA3711
ref: 14

NUT HEX 6MM

€ 1.00

14

94000060000S
ref: 14

NUT,HEX.,6MM

€ 1.00

14

9400106000
ref: 14

NUT,HEX 6MM

€ 1.00

14

94001060000S
ref: 14

NUT,HEX 6MM

€ 1.00

14

94001060080S
ref: 14

NUT,HEX.,6MM

€ 1.00

14

94001062000S
ref: 14

NUT,HEX.,6MM

€ 1.00

14

9403006000
ref: 14

NUT,HEX 6MM

€ 1.00

15

9410106000
ref: 15

WASHER,PLAIN, 6MM

€ 0.50

15

9410106080
ref: 15

WASHER PLAIN 6MM

€ 1.00

16

9411106000
ref: 16

WASHER,SPRING,6MM

€ 1.00

17

9425106000
ref: 17

PIN,LOCK 6MM

€ 1.00
