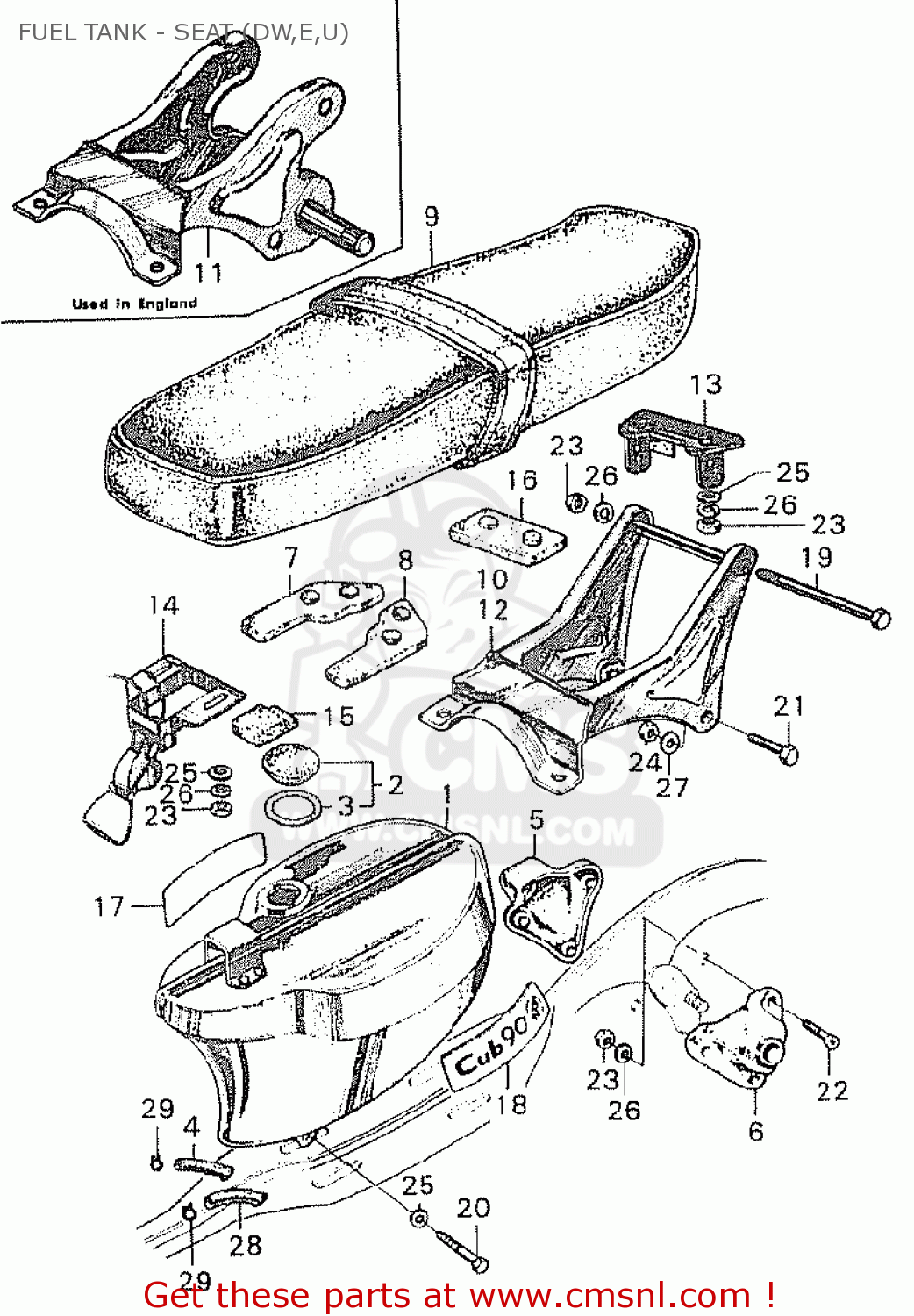

FUEL TANK - SEAT (DW,E,U) - C90 CUB ENGLAND

ref

Teil #

Beschreibung

Anzahl

1

17500046810C
ref: 1
B072037

TANK COMP., FUEL

€ 0.00

1

17500046810F
ref: 1

TANK COMP., FUEL

€ 0.00

1

17500046810L
ref: 1

TANK COMP., FUEL

€ 259.50

1

17500046810Z
ref: 1

TANK,FUEL

€ 0.00

1

17500046810AW
ref: 1
B072038

TANK COMP., FUEL

€ 0.00

2

17620041000
ref: 2

CAP FUELFILLER

€ 21.00

3

17631001000
ref: 3

PAKING,FUELFILLER

€ 3.50

4

17631046000
ref: 4
B053697

TUBE RESERVE

€ 15.00

4

17681096000
ref: 4
B053698

TUBE,FUEL RESERVE

€ 15.00

5

50303033010
ref: 5

BRACKET CUSHION

€ 48.00

6

50306033010
ref: 6

BRACKET CUSHION

€ 43.50

7

77151001000
ref: 7

RUBBER, R. SEAT

€ 5.50

7

77151041000
ref: 7

RUBBER, R. SEAT

€ 5.50

8

77152001000
ref: 8

RUBBER, L. SEAT

€ 5.50

8

77152041000
ref: 8

RUBBER, L. SEAT

€ 5.50

9

77200034600A
ref: 9

SEAT DUAL

€ 269.50

9

77200034600W
ref: 9

SEAT,DOUBLE

€ 269.50

11

77221046600AW
ref: 11
B096265
B072038

BRACKET, TANDEM SEAT

€ 26.00

11

77221046600C
ref: 11
B096265

BRACKET, TANDEM SEAT

€ 0.00

11

77221046600F
ref: 11
B096265

BRACKET, TANDEM SEAT

€ 0.00

11

77221046600L
ref: 11
B096265

BRACKET, TANDEM SEAT

€ 0.00

11

77221046600Z
ref: 11
B096265

BRACKET, TANDEM SEAT

€ 0.00

11

77221046601AW
ref: 11
B096266

BRACKET A, DOUBLE SEAT

€ 26.00

11

77221046601F
ref: 11
B096266

BRACKET A, DOUBLE SEAT

€ 0.00

11

77221046601L
ref: 11
B096266

BRACKET A, DOUBLE SEAT

€ 0.00

11

77221046601Z
ref: 11
B096266

BRACKET A, DOUBLE SEAT

€ 0.00

13

77222001810B
ref: 13

BRACKET B SEAT

€ 5.00

14

77230001810
ref: 14
B095965

CATCH ASSY SEAT

€ 18.50

14

77230040600
ref: 14
B095966

CATCH ASSY.,SEAT

€ 18.50

15

77236001810
ref: 15

STOPPER FRT SEAT

€ 3.50

16

77241001810
ref: 16

RUBBER REAR SEAT

€ 14.00

17

87121034600
ref: 17

EMBLEM RIGHT

€ 4.50

18

87122034600
ref: 18

EMBLEM LEFT

€ 6.50

19

90101001810
ref: 19

PIN SEAT HINGE

€ 13.00

20

920000602402
ref: 20

BOLT, HEX., 6X24

€ 2.00

21

9200008014
ref: 21
B027807

BOLT, HEX., 8X14

€ 1.50

21

92000080160A
ref: 21
B027808

BOLT,HEX 8X16

€ 1.00

22

937000601602
ref: 22

SCREW,CROSS 6X16

€ 1.00

23

9400106000
ref: 23

NUT,HEX 6MM

€ 1.00

24

9400108000
ref: 24
B027807

NUT,HEX 8MM

€ 1.50

24

9403008000
ref: 24
B027807

NUT,HEX 8MM

€ 1.50

25

9410106000
ref: 25

WASHER,PLAIN, 6MM

€ 0.50

26

9411106000
ref: 26

WASHER,SPRING,6MM

€ 1.00

27

9411108000
ref: 27

SPG-WASHER 8MM

€ 1.00

28

9500150450
ref: 28
B053697

TUBE FUEL 50X450

€ 23.50

28

950015545040
ref: 28
B053698

TUBE,FUEL 5.5X450

€ 8.00

29

9500250000
ref: 29
B053697

CLIP,TUBE 5.0MM

€ 1.00

FUEL TANK - SEAT (DW,E,U)
