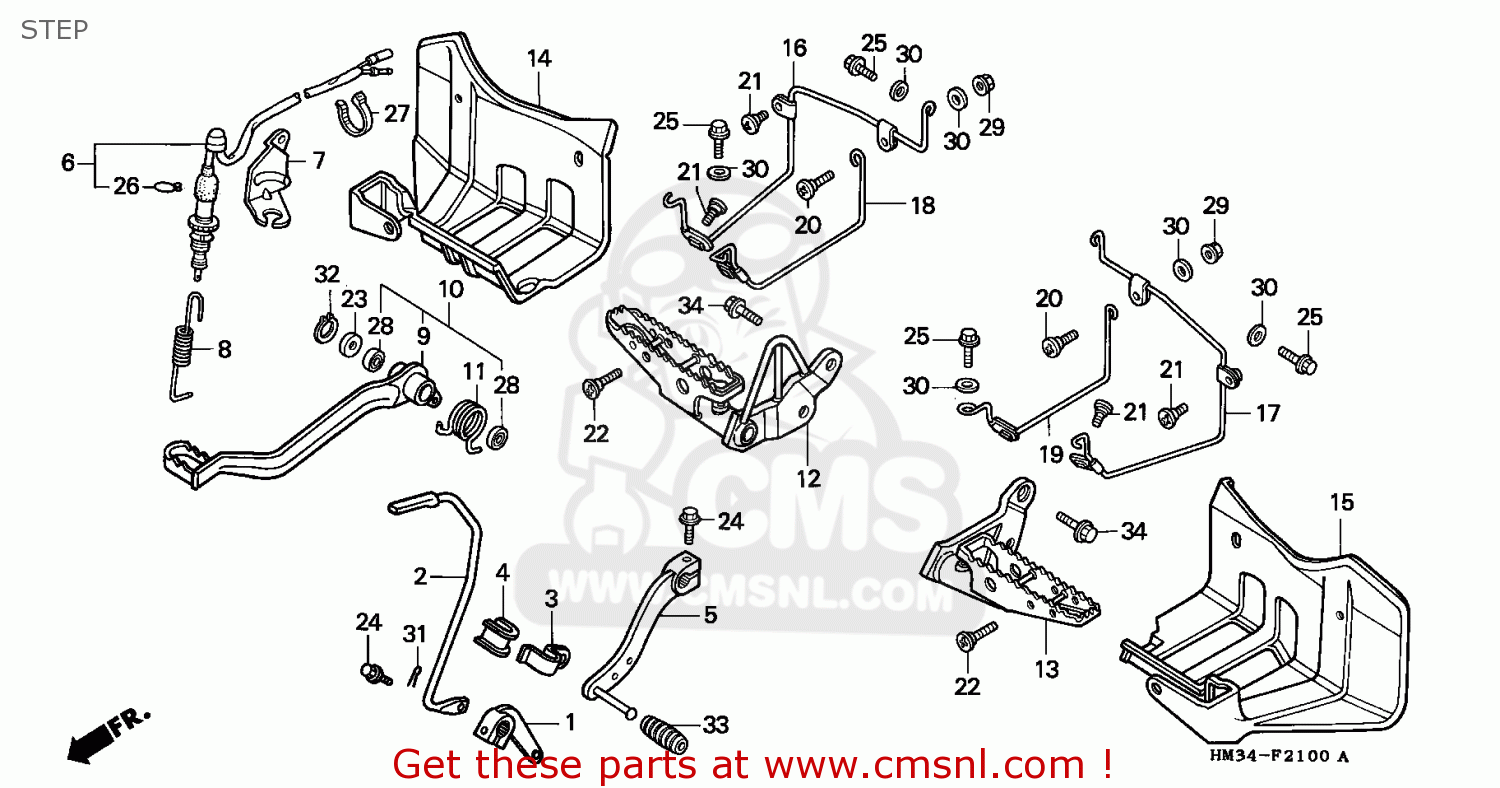

STEP

ref

Teil #

Beschreibung

Anzahl

1

24670HM3000
ref: 1

ROD,RVS.SHIFT

€ 28.00

2

24672HM3000
ref: 2

ROD,RVS SHIFT

€ 34.00

3

24673HM3000
ref: 3

HOLDER,RVS ROD

€ 7.00

4

24674HM3000
ref: 4

BUSH,REVERSE ROD

€ 5.50

5

24701HM3000
ref: 5

PEDAL,GEAR CHANGE

€ 14.00

9

46500HC0000
ref: 9

PEDAL COMP.,BRAKE

€ 66.00

11

46514HC0670
ref: 11

SPRING,BRAKE PEDA

€ 3.50

12

50610HM3000
ref: 12

STEP COMP,R

€ 89.00

13

50620HC0670
ref: 13

STEP COMP.,L.

€ 57.50

14

80121HC0670ZA
ref: 14

MUDGUARD,*NH154R*

€ 36.00

15

80122HC0670ZA
ref: 15

MUDGUARD,*NH154R*

€ 37.50

16

80123HC0670
ref: 16

STAY,R.MUDGUARD O

€ 37.50

17

80124HC0670
ref: 17

STAY,L.MUDGUARD O

€ 27.50

18

80126HC0670
ref: 18

STAY,R.MUDGUARD I

€ 18.50

19

80127HC0670
ref: 19

STAY,L.MUDGUARD I

€ 13.00

20

90103HB9740
ref: 20

SCREW,MUDGUARD,6X

€ 3.50

21

90103HC4770
ref: 21

SCREW,MUDGUARD

€ 3.50

22

90103HF1670
ref: 22

SCREW,SPECIAL 6MM

€ 5.00

23

90117HC0000
ref: 23

WASHER,17.5MM

€ 2.50

24

90118968000
ref: 24

BOLT,FLANGE,6X20

€ 3.50

25

90181HB9770
ref: 25

BOLT,FLANGE,6X16

€ 2.50

28

91206968003
ref: 28

SEAL,DUST 17X23X3

€ 5.50

30

9410306000
ref: 30

WASHER,PLAIN,6MM

€ 1.00

31

9420120100
ref: 31

PIN COTTER 2.0MM

€ 1.00

32

9451117000
ref: 32

CIR-CLIP,EX, 17MM

€ 1.00

33

9501140000
ref: 33

RUB.,CHANGE PEDAL

€ 1.50

34

958011003500
ref: 34

BOLT,FLANGE,10X35

€ 2.00

alle Baugruppen
