FRONT WHEEL (AN400AK9)

AN400A BURGMAN 2007 (K7) USA (E03)

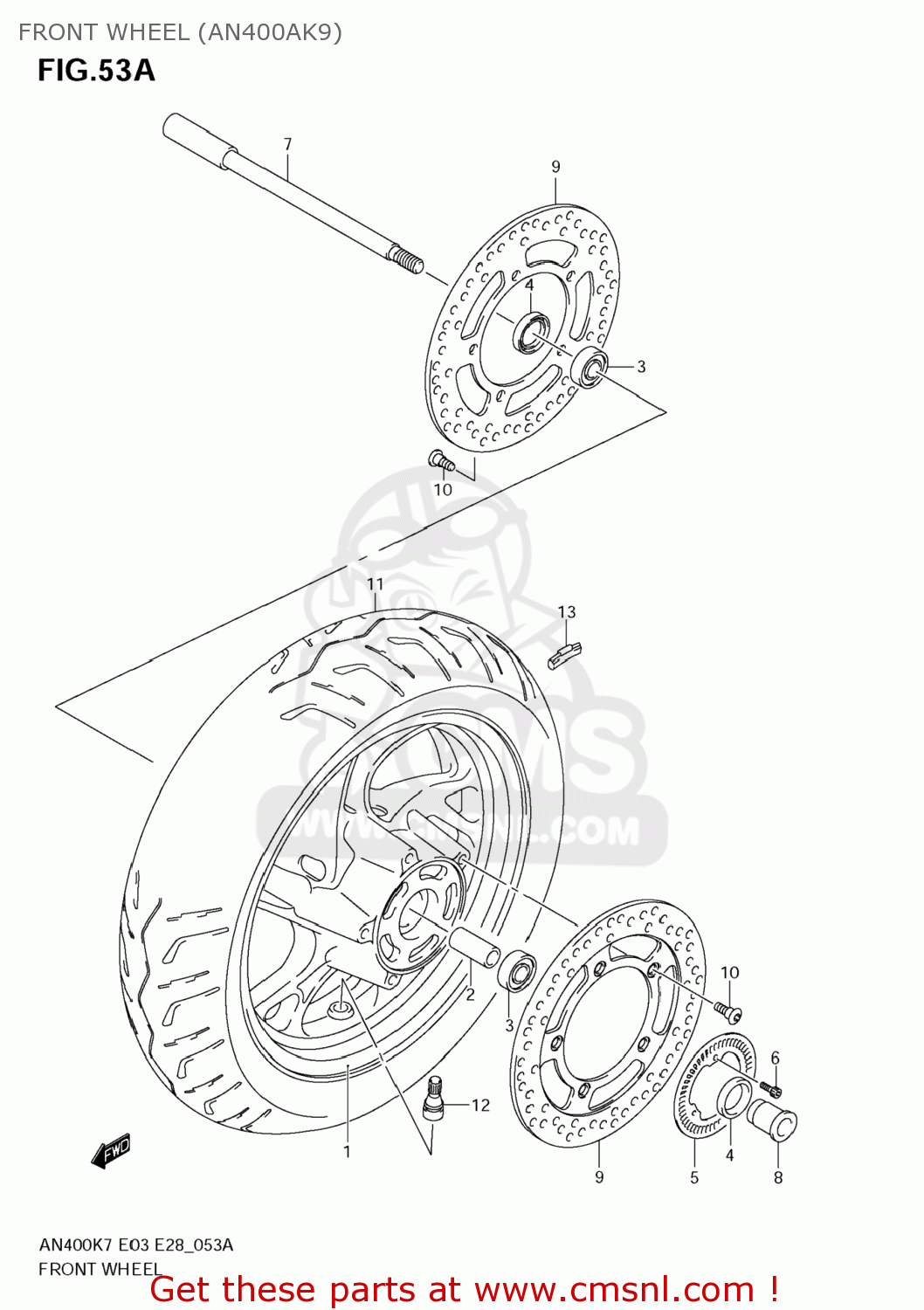

Front wheel (an400ak9) diagrama AN400A BURGMAN 2007 (K7) USA (E03)

FRONT WHEEL (AN400AK9) AN400A BURGMAN 2007 (K7) USA (E03)
FRONT WHEEL (AN400AK9) AN400A BURGMAN 2007 (K7) USA (E03)
los precios están en EUR
ref
parte #
descripción
cantidad
1
5411105H10YD8
ref: 1
WHEEL,FR(14M/CXMT3.00)
5411105H10YD8
€ 612.50
1
5411105H10YD8
ref: 1
WHEEL,FR(14M/CXMT3.00)
5411105H10YD8
€ 612.50
2
0918015070
ref: 2
SPACER(15.3X21.7X100)
0918015070
€ 11.50
3
0812362027
ref: 3
BEARING
0812362027
€ 14.50
4
0928522005
ref: 4
SEAL,OIL(21X35X5)
0928522005
€ 6.00
5
5416227G00
ref: 5
RING,SPEED SENSOR FR(50T)
€ 59.50
6
0713005127
ref: 6
BOLT
€ 2.00
7
5471105H00
ref: 7
AXLE,FR
5471105H00
€ 72.50
8
5475114F00
ref: 8
SPACER,FR AXLE,L
5475114F00
€ 12.50
9
5922114G20
ref: 9
DISC,FR BRAKE
€ 123.50
10
0910608160
ref: 10
BOLT(8X21)
0910608160
€ 3.00
11
5511005H00
ref: 11
TIRE,FR(120/80 14M/C 58S)
€ 98.00
12
4313024A00
ref: 12
VALVE ASSY,WHEEL RIM(TR412)
4313024A00
€ 6.50
13-1
4322273H10
ref: 13-1
WEIGHT,WHEEL BALANCE 10G
4322273H10
€ 4.00
13-2
4322473H10
ref: 13-2
WEIGHT,WHEEL BALANCE 20G
4322473H10
€ 5.00
13-3
4322673H10
ref: 13-3
WEIGHT,WHEEL BALANCE 30G
€ 6.00
