Honda MCX50F 1983 (D) Motorcycle Schematics

As a spare parts specialist, we are pleased to provide you with the schematics for the Honda MCX50F 1983 (D) motorcycle. This model was known for its reliability and performance on both on-road and off-road terrain.

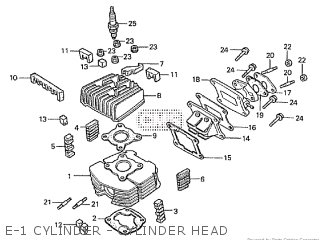

Engine Components The engine of the Honda MCX50F is comprised of several key components, including the cylinder head (E-1), crankcase covers (E-2 and E-5), clutch (E-3), kick starter spindle (E-4), oil pump (E-6), crankshaft and piston (E-7), transmission (E-8), shift drum and fork (E-9), and carburetor (E-10).

Electrical Components The electrical system of the Honda MCX50F includes headlight (F-1), meter (F-2), handle lever, cable, and switch (F-3), front brake master cylinder (F-4), handle pipe and top bridge (F-5), steering stem (F-6), front fender (F-7), front fork (F-8), front brake caliper (F-9), front wheel (F-10), rear brake panel (F-11), rear wheel (F-12), fuel tank (F-13), seat and rear cowl (F-14), side cover and oil tank (F-15), air cleaner (F-16), exhaust muffler (F-17), change pedal, brake pedal, and kick starter arm (F-18), step and stand (F-19), rear fork and chain case (F-20), rear cushion (F-21), rear fender (F-22), winker (F-23), tail light (F-24), wire harness, ignition coil, and battery (F-25), frame body and luggage carrier (F-26), and tools (F-27).

Years Covered The schematics provided are applicable to the Honda MCX50F 1983 model year.

We hope that this information is helpful in identifying the spare parts you need for your Honda MCX50F. If you have any further questions or concerns, please do not hesitate to contact us.
